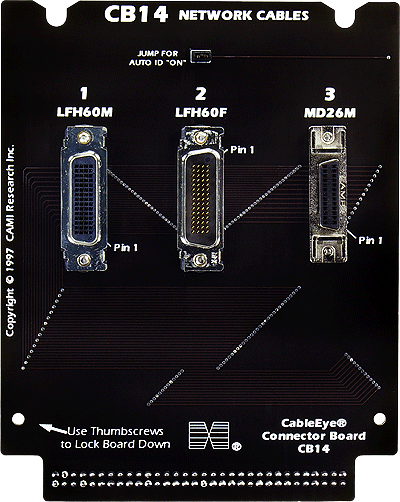

CB14 Connector Board

Network Applications
Shown Actual Size

Configuration

Configured for router cables used in network and telecom applications. Has male and female 60-pin Molex LFH connectors, and a female MD26 connector used for male cables.
Note: See CB30C for LFH 160-Pin, and CB30D for LFH 200-Pin. The CB30D is available on special order.

2 Set of two boards.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
