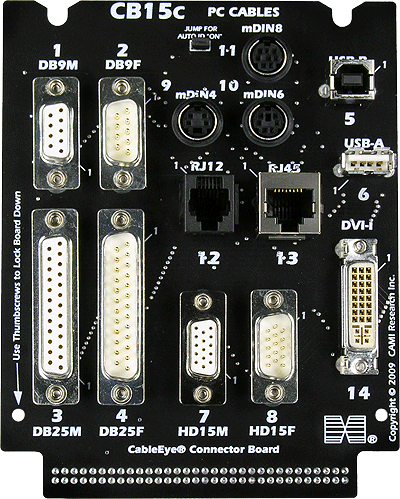

CB15 Connector Board

Personal Computer Cables
Shown Actual Size

Configuration

Includes 14 standard connectors commonly found on computers and peripheral devices: DB9 male and female (serial port), DB25 male and female (serial port, printer port), high-density HD15 male and female (analog monitors), DVI female (digital monitors), USB-A and USB-B, miniDIN4, miniDIN6, and miniDIN8 (for male cable, used with older mice, keyboards, and printers), RJ12 (6-position 6-conductor, used with modem and telephone), RJ45 (8-position 8-conductor, used with ethernet cables). MiniDIN sockets may be configured for 5- and 7-pin miniDIN sizes on special order.
Note: See CB22 or CB26 for additional USB, Firewire, and DVI connectors.

2 Set of two boards.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
