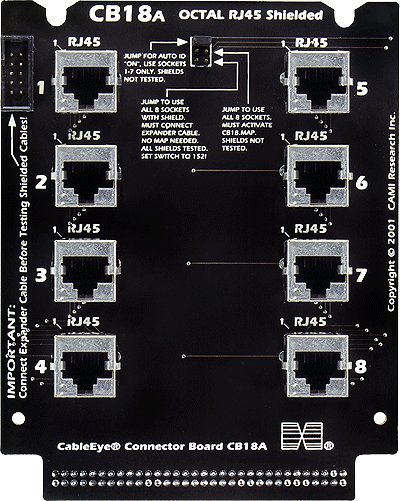

CB18A Connector Board

Octal RJ45 Shielded
Shown Actual Size
NOTE: Requires 152 Test Points for Low Voltage Testers and 256 for High Voltage Testers; will not work with Models M2Z or M2U-basic!

Configuration

Eight identical RJ45 shielded modular sockets are provided. Use one at a time, or up to eight simultaneously. Mix one of these boards with any other CB board on the other side to test octopus and other multi-headed cables. Graphic image for two or more connectors shows a group of eight RJ45 images. Requires 152 test points (M3Z or higher).

1* Expansion Module Required: HVX-series testers require an expansion module. Not compatible with Model M2Z or M2U-basic.

2E Set of two boards with expander cable.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
