CB18C Connector Board

Eight Easy to Replace Shielded RJ45
NOTE: Requires 152 Test Points for Low Voltage Testers and 256 for High Voltage Testers; will not work with Model M2Z or M2U-basic!

Configuration

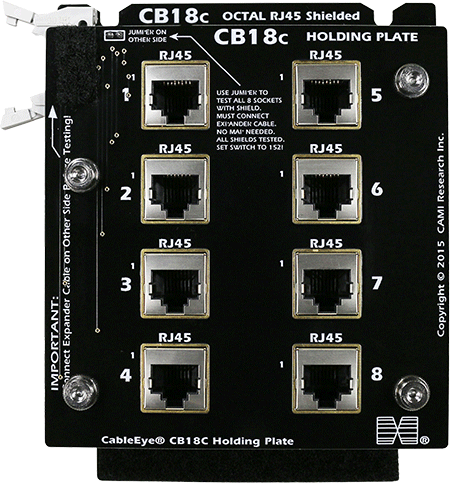

Use this board set to test between one and eight cables with shielded or unshielded RJ45 connectors. The board may be mixed and matched with other standard CB boards. All eight connectors have independent test points and may thus be used simultaneously if desired.

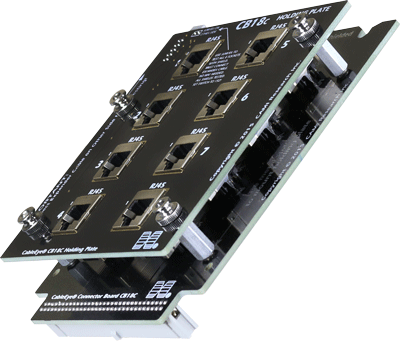

The CB18C has replacable plug-in connectors which are secured by a separate hold-down board. To change the connectors, remove the four thumbscrews on the hold-down board and lift it off. The connectors may then be pulled off and easily replaced. A replacement kit of 16 RJ45 connectors is included with each new board set. Reorder Item 748K to obtain additional replacement connectors.

1* Expansion Module Required: HVX-series testers require an expansion module. Not compatible with Model M2Z or M2U-basic.

2E Set of two boards with expander cable.

Software

IDRequires software release dated Feb. 2016 or later to enable Auto ID.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
