CB20 Connector Board

SCSI III, Ultra SCSI

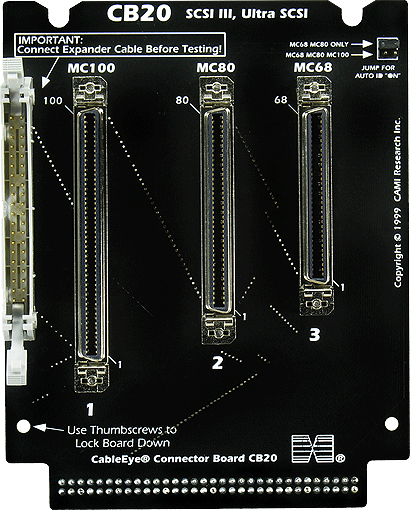

Shown Actual Size

Configuration

Three mini-Centronics-style connectors in sizes of 68 pins, 80 pins, and 100 pins permit testing of fast-wide SCSI cables or other types using these connectors. Requires 256 test points. Bare board available for other large-format connectors that fit the 4-row staggered-pin footprint of these connectors; contact us for details and pricing for the bare board version.

1 Expansion Module Required: One (1). Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
