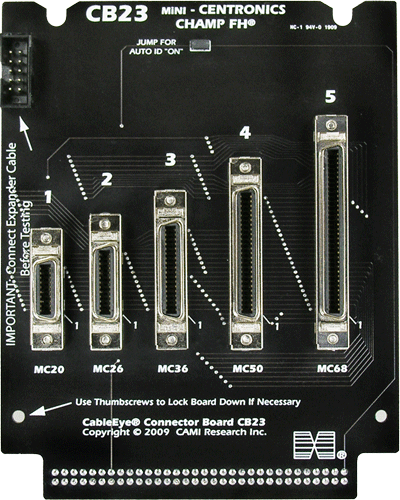

CB23 Connector Board

Mini-Centronics and CHAMP FH
Shown Actual Size

Configuration

CB23 includes the most common sizes of mini-Centronics style connectors (also known as CHAMP FH) used in SCSI II and III, parallel printer ports (36-pin), and other applications requiring high density impedance-controlled connections. Board includes female connectors with 20, 26, 36, 50, and 68 pins. 68 Pin connector requires 152 test points, is not compatible with Model M2Z or M2U-basic and requires one (1) expansion module with HVX-series testers. Bare board available for other connectors that fit the 4-row PCB footprint of these connectors; contact us for details and pricing for the bare board version.

1* Expansion Module Required: 68 pin connector requires one (1) expansion module with HVX-series testers.

2E Set of two boards with expander cable.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
