CB32 Connector Board

DB104 High Density Connectors
NOTE: 256 Test Points Required!
Shown Actual Size

Configuration

Use CB32 for DB104 male or female connectors. This board comes without connectors installed. Easily solder in your connectors: one vertical male or female connector on each board, as needed. Requires 256 test point or greater.

DB104 connectors may be obtained from Positronic Industries.

TE Connectivity: 208877-1, DB104 Receptacle, 208871-1, DB104 Plug.

Connectors Not Included: Solder Service1 available.

1 Expansion Module Required: One (1). Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).


1 - CB32 is shipped without connectors installed as shown here.

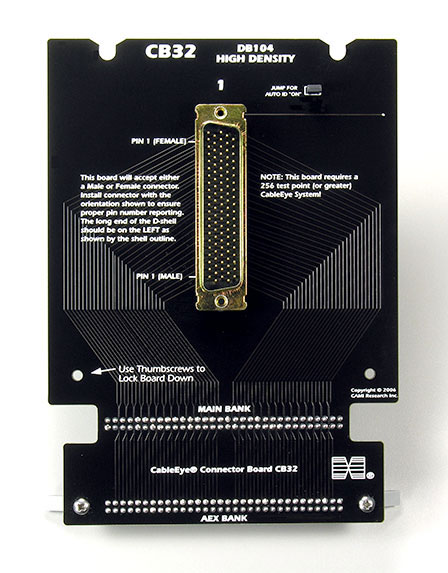

2 - The board appears as shown here with a DB104 HD male connector installed.

3 - Connecting the CB32 to a 256-TP CableEye System.
A CB30 appears here, but the connection method is identical.
One 64-conductor expander cable is included with each board.
