Benefits of CableEye System

Benefits

Visualize Cable Wiring Quickly Locate Intermittent Connections Print Full Cable Documentation & Labels Store Cable Data in Searchable Database Export Wire Lists to Other Applications Use Macros to Guarantee Test Consistency Log Test Data for Batch Testing Easily Link to Custom Cable/Harness Fixtures Build Harnesses using Guided Assembly Design Cables, Create First Article Test Data

Print Full Cable Documentation

Example shows colour graphics of connector, wiring schematic, and netlist with color-coded wires
Load - Test - Print!

For hard copy, one simple command lets you create a crystal-clear graphic wiring diagram on any printer. Your descriptive notes, label text, and wire list are all printed on the same sheet for convenient reference. This helps to support the documentation and traceability requirements of ISO9000 and other quality standards, as well as providing a clear written record of any cable's wiring for your or your customer's benefit. You may also print reports as .pdf files for electronic distribution, or automatically save them to an archival database.



Standard, 'Out-of-the-box', Customizable Reports: Samples

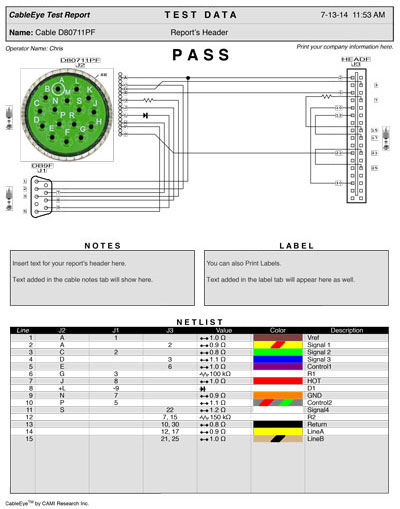

Harness Low Voltage Test Example shows colour graphics of connector, wiring schematic, and netlist with color-coded wires
HD15 Connector Low Voltage Test Example shows colour graphics of connector, wiring schematic, and netlist with color-coded wires

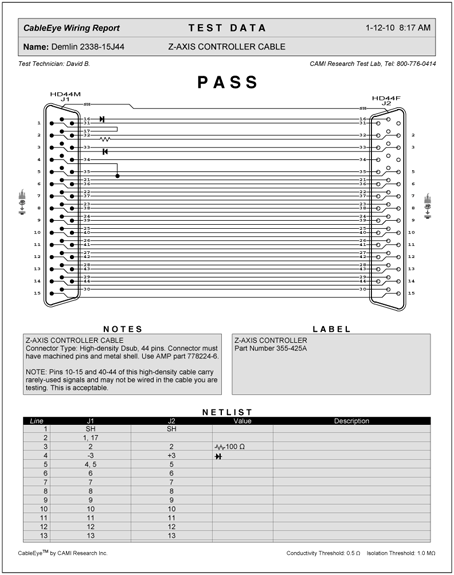

HD44 Controller Cable LV Test Printed Cable Test Report

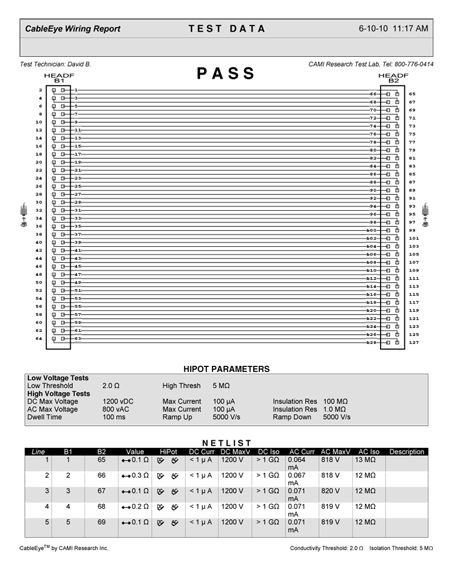

64-pin Ampmodu Cable HiPot Test Report with Hipot Data

Standard, 'Out-of-the-box', Labels: Samples

For each cable, customzable label text is stored in the database along with wirelist, schematic, and descriptive notes, and may be loaded at any time.

Keep a dedicated label printer connected to your PC while your network printer is used strickly for documentation or log reports.

The example below shows labels printed for individual or batch labelling. The size, spacing, and number of labels is easily adjusted.

Individual or Batch Labelling
3 lables with sequential serial numbers

When you use an automatic test sequence to test, the "COUNT" variable, which tracks the number of cycles in a test procedure, may be placed within the label text to generate serialized labels at the time of printing. For example, if the label text is:

"Part Number GB581<COUNT>CL"

the value of the COUNT variable is inserted into the text at the time of printing. If the COUNT variable were "15" initially, the following sequence would be produced:

Part Number GB58115CL
Part Number GB58116CL
Part Number GB58117CL
etc.


Custom Reporting/Labelling Add-On Option: Samples

  • Define your own layout to satisfy your customer's reporting requirements.
  • Add company logo or any image, bar code fields, custom title blocks and more.
  • Applies to all kind of reports, including Test Reports, Difference Reports, Batch Reports.
  • Design reports in ANY target language and use scripting to choose which report to be printed automatically.

Harness Low Voltage Test
Sample printout shows test report with corporate/customer logo, barcode etc. enabled with CableEye Custom Reporting software option.

Individual or Batch Labelling

Easily Design Reports in any Language

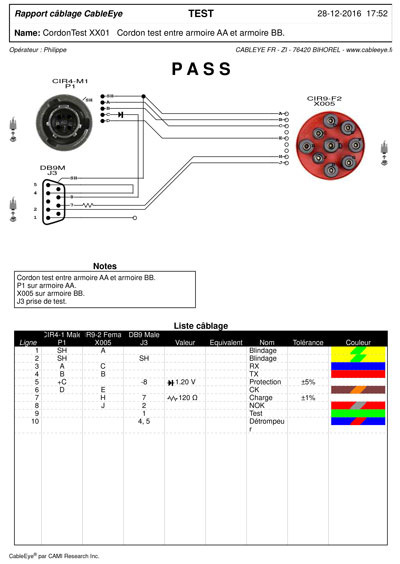

French Sample - Test Report Example shows colour graphics of connector, wiring schematic, and netlist with color-coded wires

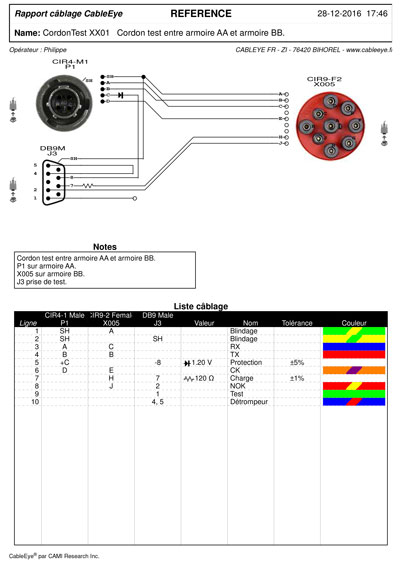

French Sample - Match Report Example shows colour graphics of connector, wiring schematic, and netlist with color-coded wires

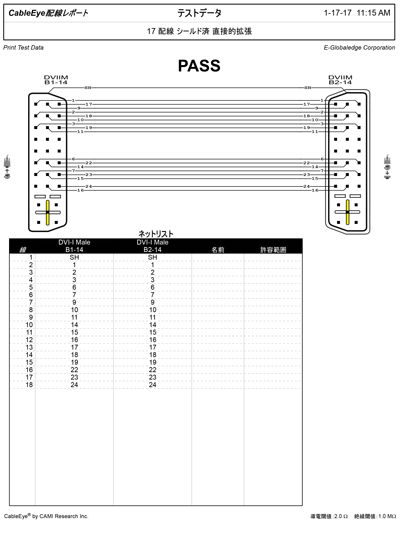

Japanese Sample - Test Report Test report - Japanese

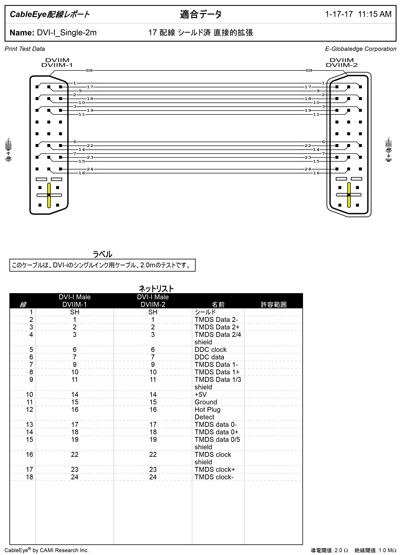

Japanese Sample - Match Report Match data report - Japanese
