Minihook Screen Shot

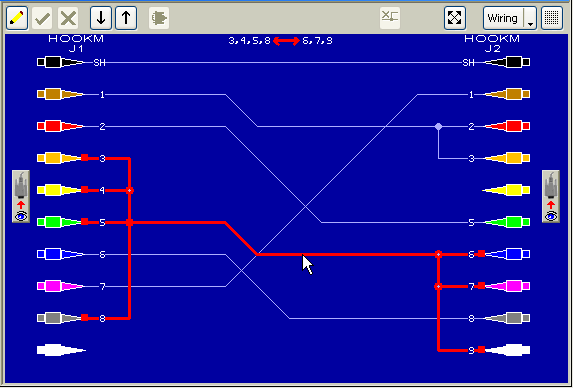

This full-size CableEye screen shot shows the graphic display obtained when the minihooks are used. You may connect a minihook cable on each side for test cables with bare wires at both ends, or a minihook cable on one side and a standard connector board on the other to see where unlabeled wires terminate in a connector. In the situation below, minihooks are connected to bare wires on both ends. Back to Description
