CB25X Connector Board

Specialized Board for M3U-Series Models Only

M3U-Series Expansion Module Transient Suppressor Board for High Static Environments and Long Cables

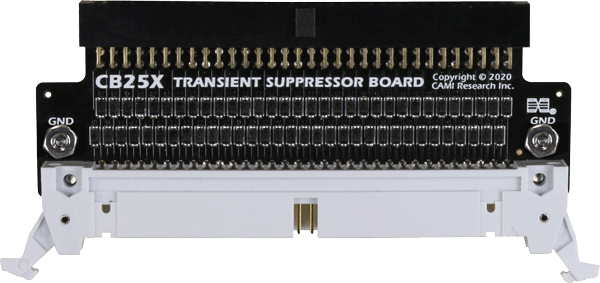

Shown Actual Size


If using an M3U-series tester, use CB25X on every expansion module when regularly testing cables longer than 10 ft (3m), when testing cables with a large surface area shield or conductor, or when working in a high static environment to guard your M3U tester against damage from electrostatic discharge. On each board, 64 transient suppressor diodes especially designed for fast switching divert any overvoltages to ground before damage to tester electronics can occur. The CB25X mounts directly to the 64-pin headers in the expansion module. Attach your cable interface directly to CB25X. Required for CableEye M3U series models only. Use CB25 (Item 755) on the control module, and CB25X variant on expansion modules.

NOTE: Once installed, a) calibrate the system, b) do not remove, not even when shipping the system to us for service.
