Custom Mating Adapter Cables

Next | Previous
1 - Harness Tester with 356 Test Points and Multiple Adapter Cables

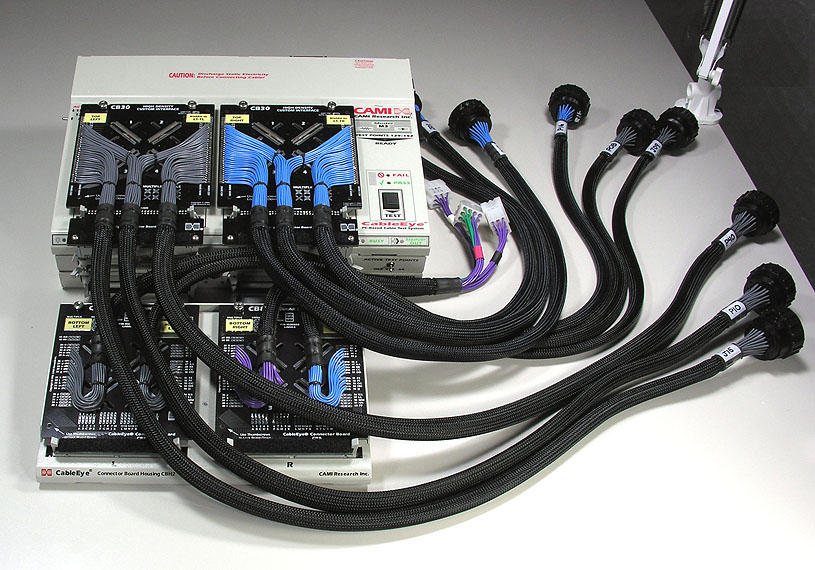

Custom adapter cables were mounted on two CB30 boards (top) and two CB8 boards (bottom).

Next | Previous
2 - The Aircraft Harness under Test is Connected

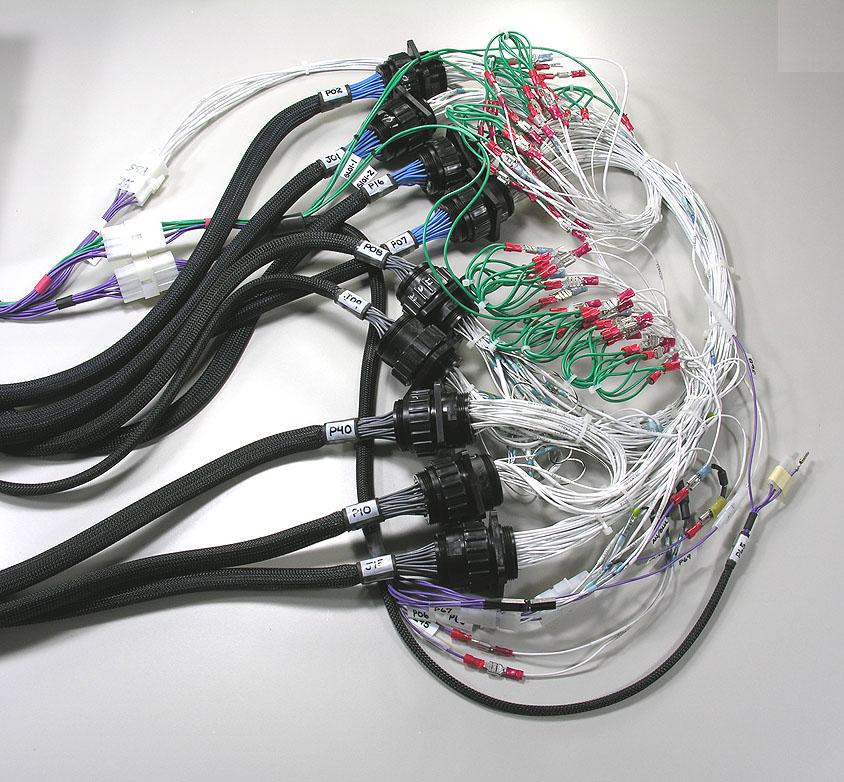

The green wires create a ground wire bus for the spade lugs on the test harness.

Next | Previous
3 - The Complete Test Setup is Shown Here

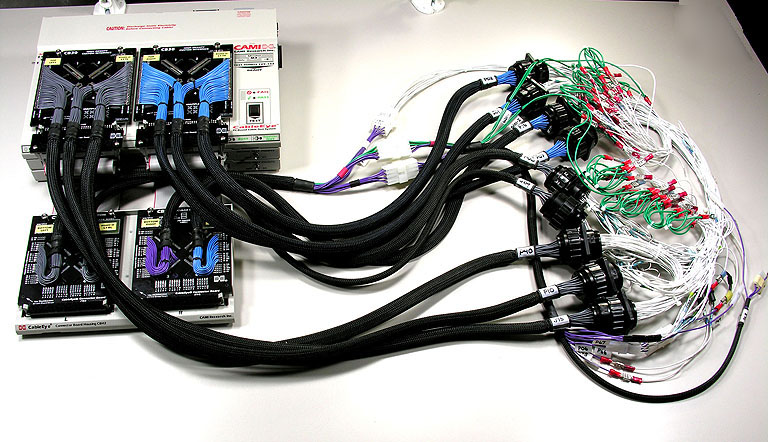

The cost of parts and labor to build this custom harness interface is about US$4000 (not including the tester). We provide a turnkey solution with all programming, maps, and test scripts.
