CB-T1 Training and Verification

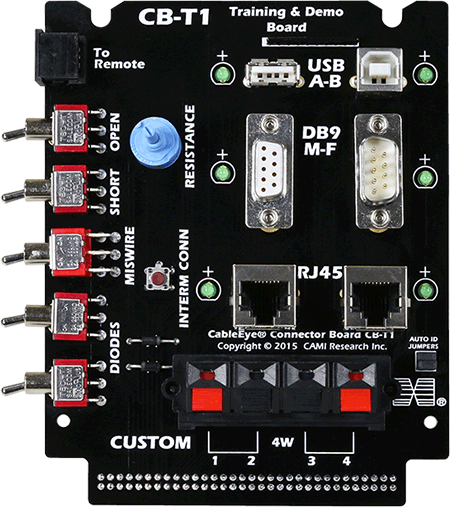

Adapter Board

Superseded by CB-T2 (Item 802).

Configuration

For Training:

Use of this adapter board is a great way to familiarize new employees with CableEye test systems during their orientation. Training may be self-directed with this tool.

Populated with a few common connectors, the board allows trainees to methodically experience how the system responds to opens, shorts, miswires, diodes, resistance, and intermittent connections while at the same time learning to operate the tester.

The adapter board comes with identification LEDs for each connector that may be used to show the trainee operator which connector s/he must connect. This function requires connection to the remote control port of the tester so is not compatible with models M2Z or with obsolete model M2U-Basic.

A Training/Verification procedure is included with the board.


For Tester Verification:

As a system verification tool, the CB-T1 allows customers to verify the tester is working properly by quickly sampling the full spectrum of fault detection without use of example fault cables. The limitation of physical fault cables is that typically one example is needed for each fault. Use of the CB-T1 will provide a faster and more through verification process. The verification cable itself may be learned on first use, and loaded thereafter prior to going through a simple fault simulation procedure.

A Training/Verification procedure is included with the board.



1 Single board with miniDIN8 cable for power, and DB9 M-F cable for testing.

Software

IDRequires software release Build 1212 or later to enable Auto ID.

Voltage Rating

For low voltage operation only. Not intended for HiPot.

Training and Verification Fixture for CableEye Cable and Harness Continuity and HiPot Testers
