CB58 Capacitance Calibration
Verification Board

Configuration

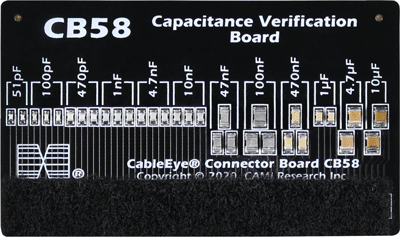

Verify proper capacitance measurements. A range of 32 precision capacitors cover all 64 test points available on this board and span values from 51 pF to 10 μF. Manually move the board to additional banks and retest to cover all test points. If you have expansion modules, you may wish to order a CB48A Header Isolator™ protective adapter, Item 778A, to permit connection of the board to expansion modules. Includes a reference cable file calibrated uniquely for each serialized board. Requires M4, or HVX with Advanced Measurements option.

1Sold as a single board.

Voltage Rating

For low voltage operation only. Not intended for HiPot.
