CB56 Connector Board

Phoenix Contact 3.5mm Pitch Connectors

Configuration

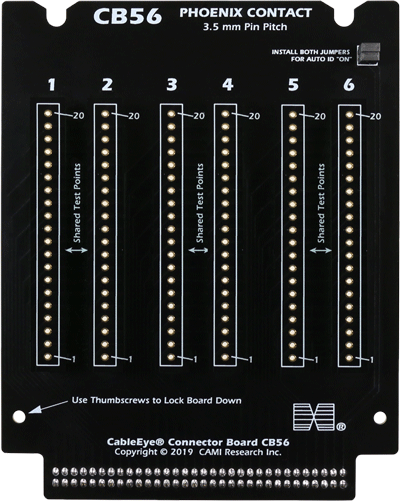

The CB56, sold without connectors, has six positions for 20-pin Phoenix Contact Connectors with 3.5 mm pitch. It offers 6 identical positions for 20-pin connectors. Position 1 is in parallel, sharing all 20 test points with position 2, but both are independent of positions 3, 4, 5 and 6. Positions 3 and 4 also share test points, as well as positions 5 and 6. You can test a 2-ended cable using positions 1 and 3 for example, or even test a 3-ended cable using position 1, 3 and 5. This board will also accept any though-hole connector with a 3.5mm pitch, up to 20-pins.

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.



Software

IDRequires software release Build 1754 or later to enable Auto ID.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
