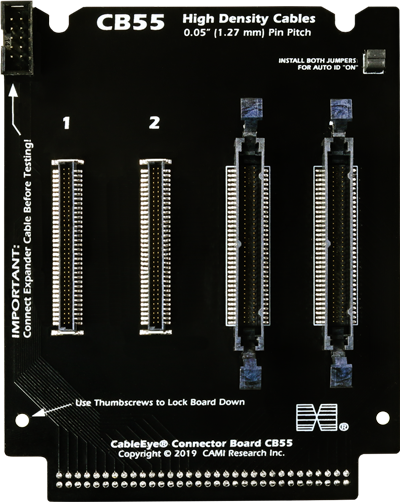

CB55 Connector Board

Surface Mount Single and Dual Row Connectors with Compact Pitch: 0.05" (1.27mm)

Configuration

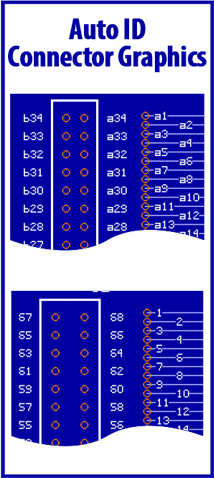

The CB55, sold without connectors, has surface mount pads for surface mount single and dual row connectors with 0.05” (1.27mm) pitch and up to 34 and 68 pins respectively: two each of different row separations. A single row connector can be soldered to any dual row location. The footprints are suitable for many connectors including those by 3M and ERNI. As with all standard CB boards, connectors under test are instantly, automatically detected and rendered on the screen together with the wiring.

Requires 152 test points; Compatible with Model M2U-basic for lowest 30 pads in any row only. Requires expansion module with HVX-series testers when using more than the lowest 30 pads in any row.

Connectors Not Included: Solder Service1 available.

1* Expansion Module Required: One (1) for HVX-series only when using more than the lowest 30 pads in any row.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Software

IDRequires software release Build 1731 or later to enable Auto ID.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
