Item 746A
Previous Item | Next Item

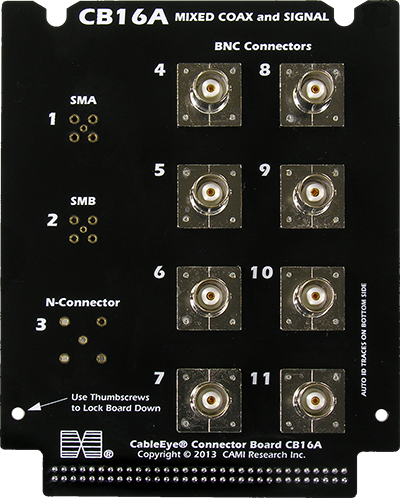

CB16A Connector Board

Mixed Coax and Signal
Shown Actual Size


Includes eight BNC connectors for coaxial cables, and open footprints only for SMA, SMB and N-Connectors.

Connectors Not Included: SMA, SMB and N connectors are not included. Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.


IDRequires software release Build 1212 or later to enable Auto ID.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
