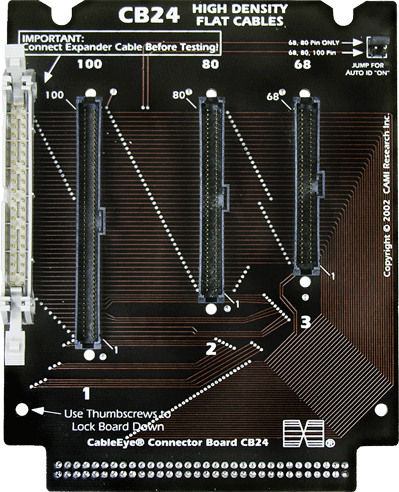

CB24 Connector Board

High-Density IDC Flat Cables
Shown Actual Size

Configuration

Use CB24 to test high-density flat cables with IDC wiremount sockets (0.025" wire centers, 0.050x0.100" pin centers). Four-wall headers for 100-pin, 80-pin, and 68-pin cables are provided on each board. Bare board available for other large-format connectors that fit the 2-row footprint of these connectors; contact us for details and pricing for the bare board version. Requires 256 test points.

1 Expansion Module Required: One (1). Not compatible with M2U-basic.

2E Set of two boards with expander cable.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
