Item 755B
Previous Item | Next Item

CB25B Header Isolatorâ„¢ Vertical to Right-Angle Transition Board

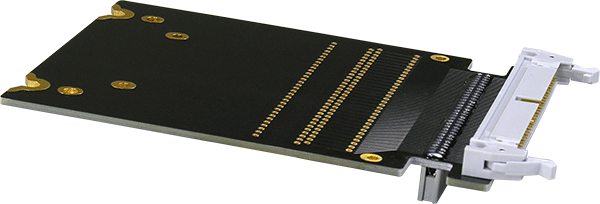

Shown Actual Size

Configuration

This Header Isolator protective adapter converts the vertical header on any CableEye control module to a right-angle type to simplify a flat-cable interface to the tester when expansion modules are attached. It protects built-in headers on any tester from contamination, bent pins and wear. No diodes or other components are present on this board. Set of two boards.

Voltage Rating

Rated for operation up to 1500 Vdc, 750 V/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

© Header Isolatorâ„¢ is a Trademark of CAMI Research Inc.
