Item 772A
Previous Item | Next Item

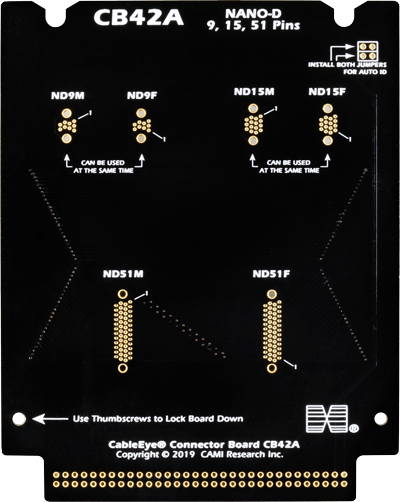

CB42A Connector Board

Nano D 9-, 15-, and 51-Pin Connectors
Male and Female of Each Size
Shown Actual Size

Configuration

CB41A and CB42A provide connector footprints for small- and medium-size Nano D connectors. Each board offers positions for male and female connectors of each size. The price does not include connectors, and each board ships as a bare board. If the customer provides the connectors, we will solder them into position and test the boards for a nominal charge; contact us for details. Set of two boards.

Note: When ordering connectors, choose post length suitable for a 0.093” thick PCB. This is the board thickness of all CAMI CB boards.

Software

Requires software release V6.0 or later.

Voltage Rating

Can be certified for operation at 500 Vdc/ac for a fee. This certification fee is waived for boards purchased with a new HVX-series tester.
