CB41 Connector Board

Micro D 21-, 25-, 31-, and 37-Pin Connectors
Male and Female of Each Size
Shown Actual Size

Configuration

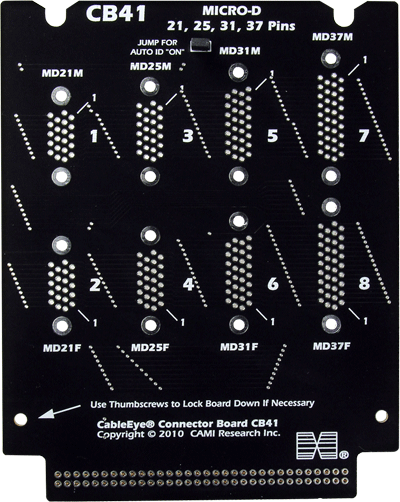

CB41 and CB42 provide connector footprints for small- and medium-size Micro D connectors. Each board offers positions for male and female connectors of each size.

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

Footprint Reference

Use this pdf document to verify proper footprint for your mating connectors.
