CB40 Connector Board

Elco/Edac 20-, 38-, and 56-pin Rack & Panel Connectors
Shown Actual Size


Three connector positions provided on this board will accept either a male or female 20-, 38-, and 56-pin Elco/Edac Rack & Panel connectors.

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

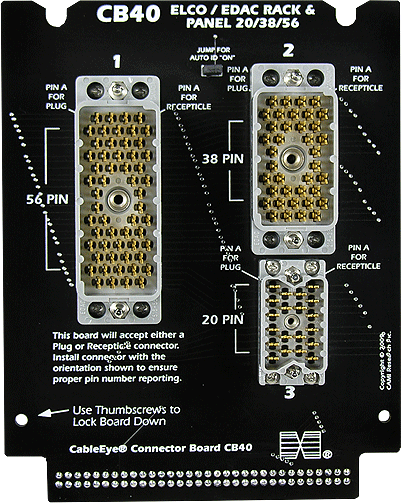

Board shown with User-supplied connectors mounted.
