CB39 Connector Board

Cinch 0.156” 12-pin Edgecard Connectors
Shown Actual Size

Configuration

Use the CB39 as an interface to adapter cables commonly used with aircraft and automotive test systems. This board permits maintenance or repair testing in space-limited environments using your CableEye tester and a laptop computer where the original test equipment would not have access. Also use to quickly check the adapter cables themselves to insure low resistance and connection integrity. Requires 256 test points.

1 Expansion Module Required: One (1). Not compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).


1 - Ten pins per connector are wired.

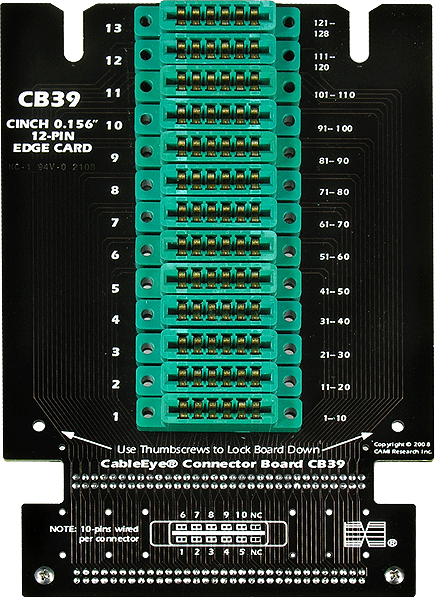

2 - Top view. Downward-facing header on front of board connects to an expansion module using a supplied flat cable.

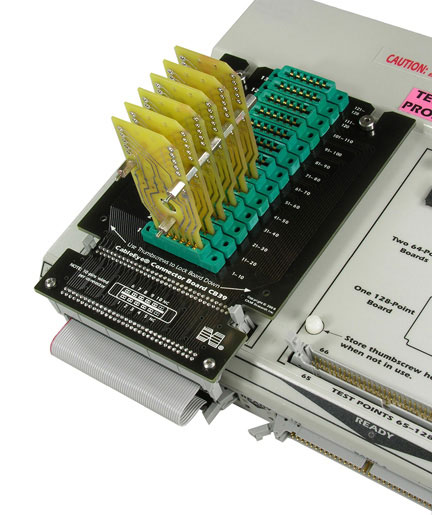

3 - Board mount on CableEye with example test connector (no wiring installed).
