64-Pin Boardmount Sockets

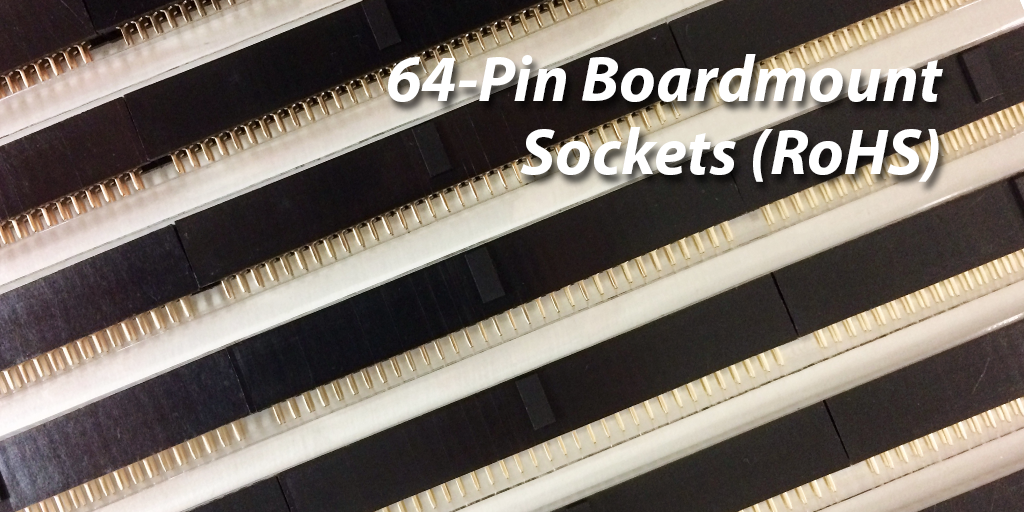

Image of sockets in packaging showing polarization bump and gold flashed pins.

An Array of Unmounted Sockets


Technical Data
How to Order


Next Topic | TOC

The 3M 8564-4500PL 64-pin boardmount socket that has been used on CableEye CB boards (interface fixtures) since 1994 was discontinued by 3M in February 2017.

We found a replacement socket, described on this page, which is even better than the 3M 8564-4500P in fit and high voltage qualities. You may order these directly from CAMI Research whether or not you own a CableEye tester.

Photo showing socket mounted onto a CableEye CB Board, and two views of an unmounted socket.
Boardmount Socket, Item 855

Technical Data

Next Topic | Previous Topic | TOC

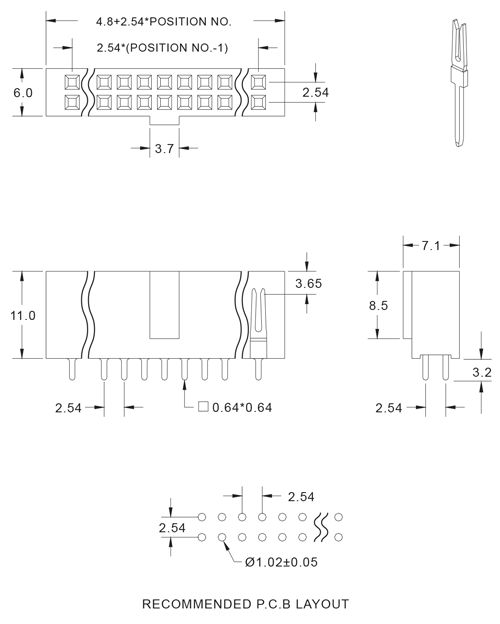

Technical Drawing of Polarized Boardmount Socket that replaces 3M 8564-4500PL, and of Recommended PCB Layout

How to Order

Previous Topic | TOC

Item 855, 64-pin Boardmount Socket ....... 9.95 USD each

Orders by Purchase Order:
Provide three trade and a bank reference to set up Net 30 terms. Minimum order $50.00. Email or Fax your order; we will ship stocked items within two business days of receipt of order.

Orders by Credit Card:
We will take VISA/MasterCard/American Express if you prefer. Minimum order Qty 2. Call, email, or fax your order. We will ship stocked items within two business days of receipt of order.

CAMI Research Inc.
42 Nagog Park, Suite 115
Acton, MA 01720

Tel: (978) 266-2655
Fax: (978) 266-2658

sales@camiresearch.com (technical or other questions)
orders@camiresearch.com (orders)

If you have technical or other questions, please contact Technical Support at the above numbers, or chat with us live by clicking on 'Live Chat' below.
