- View real-time wiring schematics from measured cable connections.
- Graphically show opens, shorts and miswires.
- View into pins or into termination end with the click of a button.
- Show diodes and resistors graphically and Highlight wires of interest.
- Instantly swap schematics between Test Data and Match Data to detect subtle differences in wiring.
Graphic Wiring Display

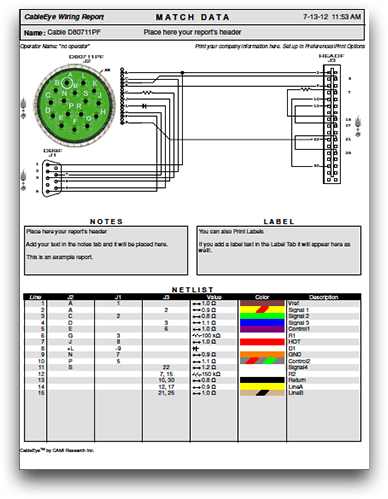

Click the images for more details...
