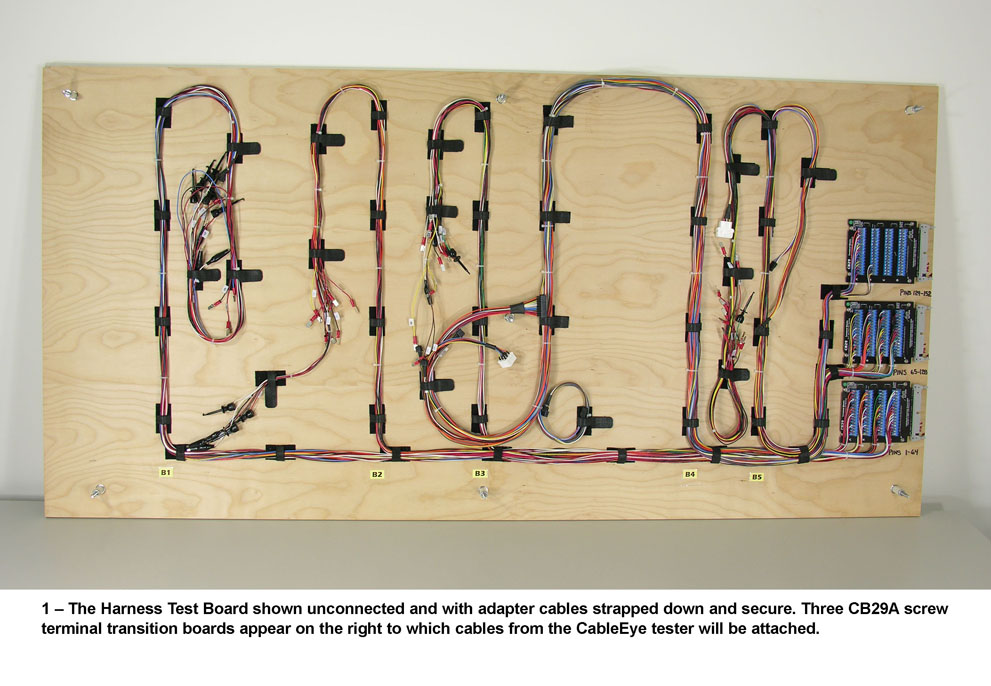

1 - Harness Interface Board

Harness test board shown unconnected and with adapter cables strapped down and secure. CableEye tester attached to the CB29A screw terminal transition boards to the right.


Book Free 2 Wk Trial Get Free Literature Package

+1 978 266 2655



Next | Previous

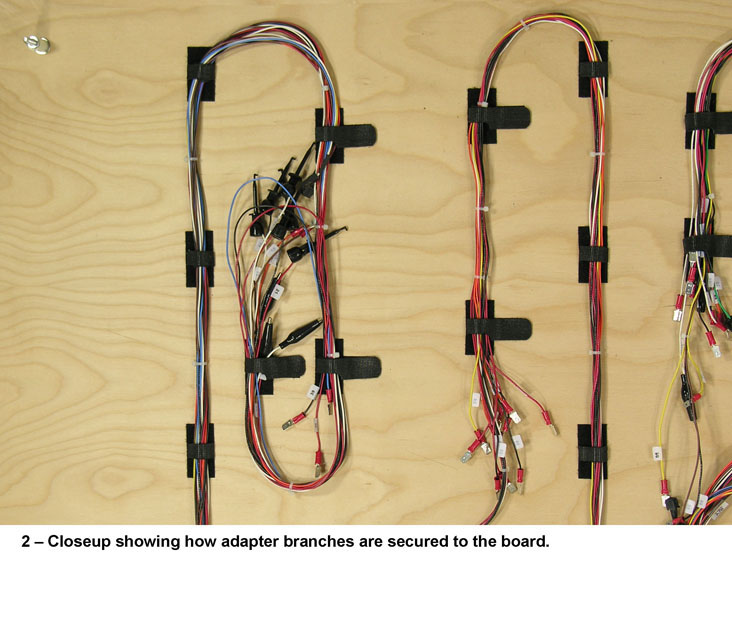

2 - Adapter Branches

Close up of test harness adapter branches


Next | Previous

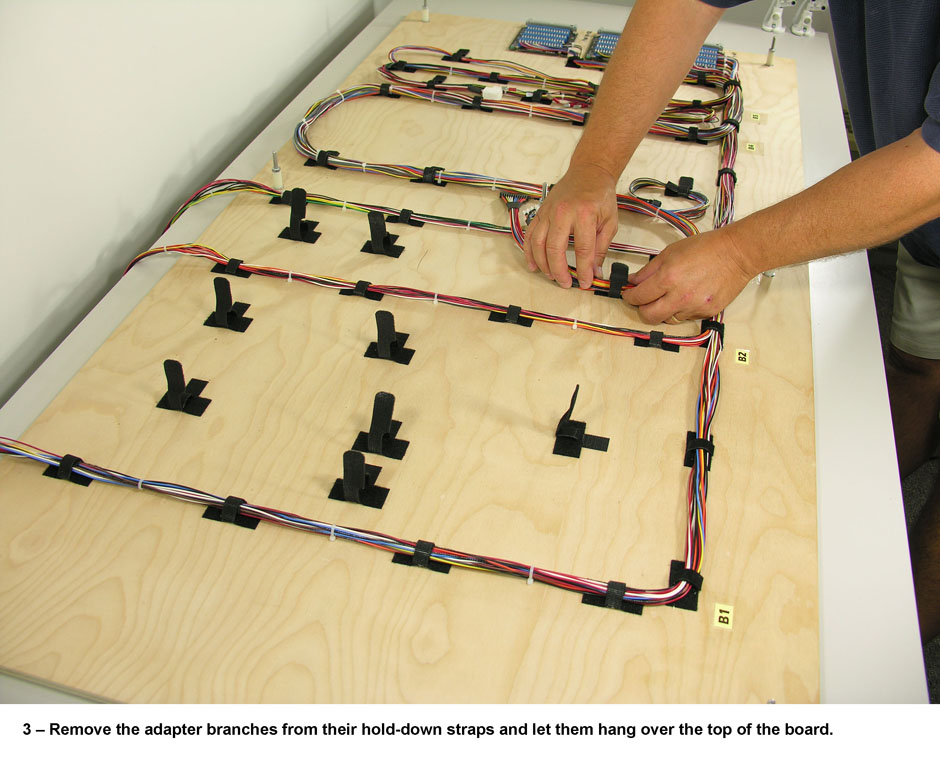

3 - Board Setup

Harness Test adapter branches hang over top of board


Next | Previous

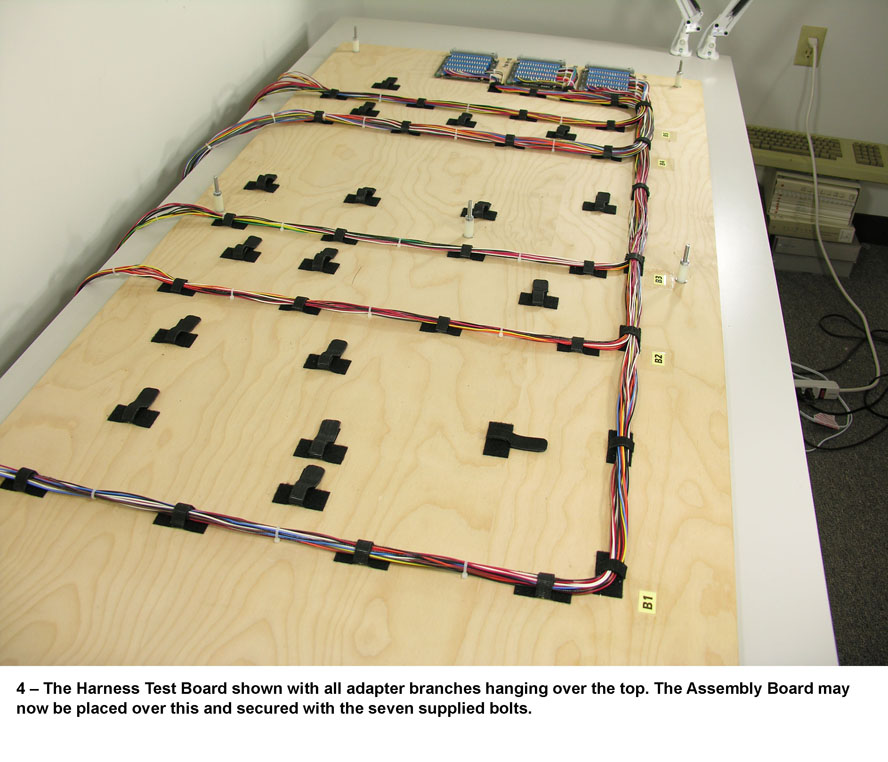

4 - Mating Harness Ready to Connect


Next | Previous

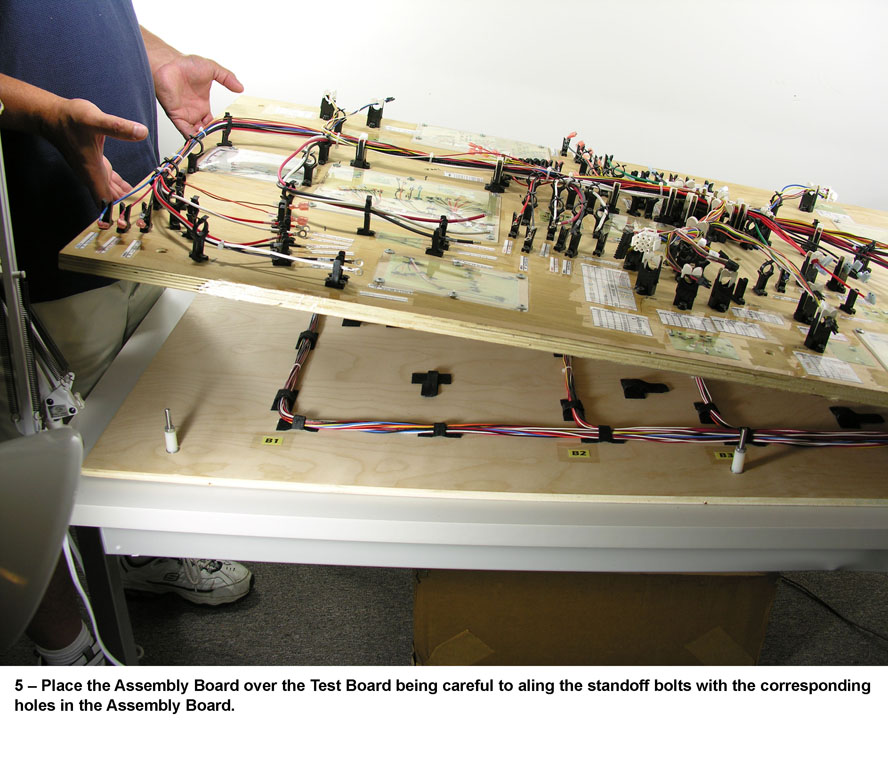

5 – Placing the Harness Assembly Board

Harness on loom being lowered onto test board


Next | Previous

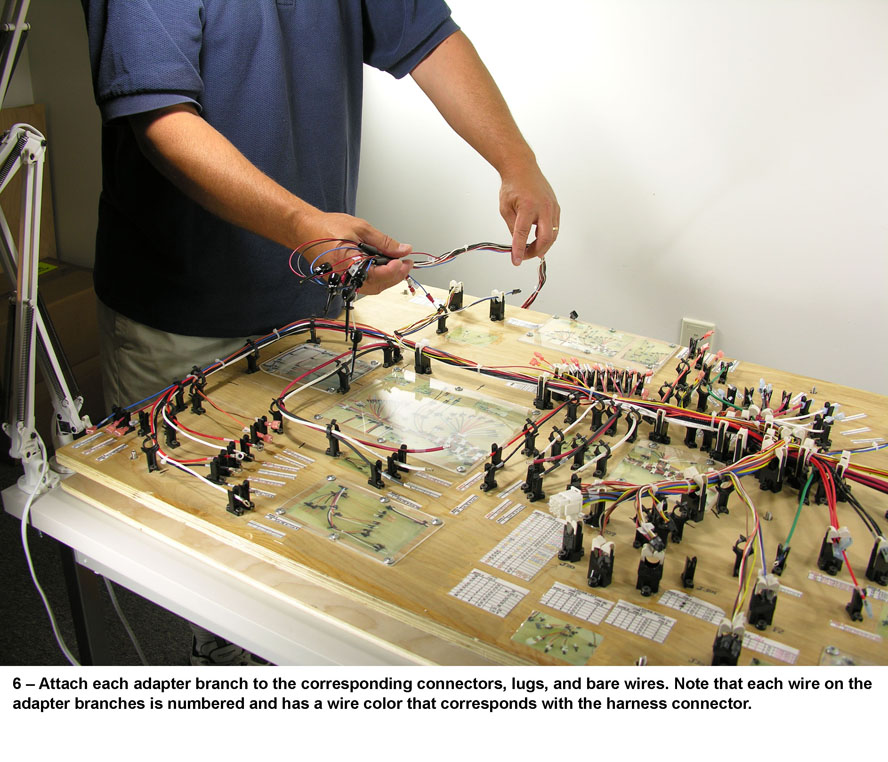

6 - Attaching the Mating Branches

Each wire on the adapter branches is numbered and has a wire color that corresponds with the harness connector.


Next | Previous

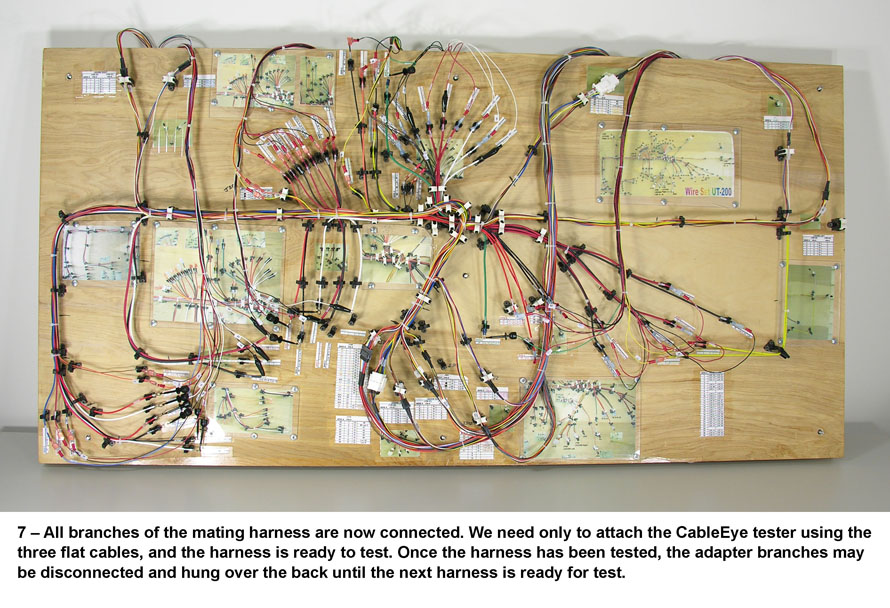

7 - Ready to Test

CableEye tester is attached with 3 flat cables.
