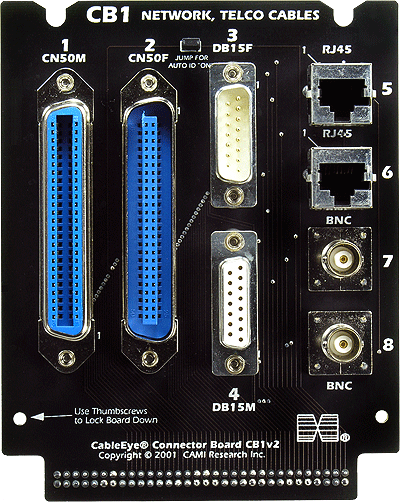

CB1 Connector Board

Network and Telecommunications Applications
Shown Actual Size

Configuration

Each board includes connectors for Centronics 50-pin male and female (Telco 25-pair and SCSI-I cables), DB15 male and female (network and video cables), two RJ44/45 modular connectors (8-position, 8-conductor network and telephone cables), and two coax BNC connectors (network and video cables). Set of two boards.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).




CB1 Connector Board
