Item 732A
Previous Item | Next Item

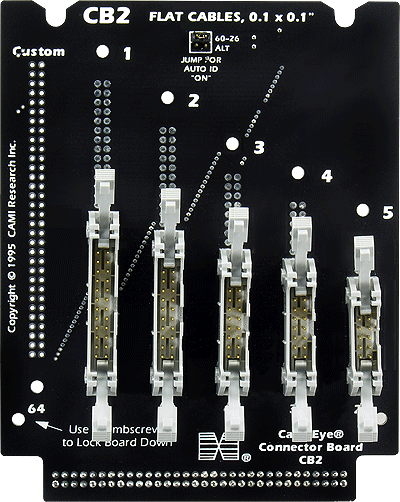

CB2A Connector Board

Flat Cables, Ribbon Cables with 0.1" Centers
Shown Actual Size

Configuration

This board is identical to Item 732, but includes dual-row headers for 24, 20, 16, 14, and 10 pins. Other header sizes can be provided also; specify when ordering. One 64-position footprint is open for a User-supplied custom size. Substitute bare headers or no headers for shrouded latch headers on special order.

2 Set of two boards.


Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).



CB2A Connector Board

CB2A | Item 732A | Shrouded Latch Headers Included


CB2 Connector Board | Bare Headers
CB2 | Item 732B | Bare Headers Included | Jumpers Not Included
