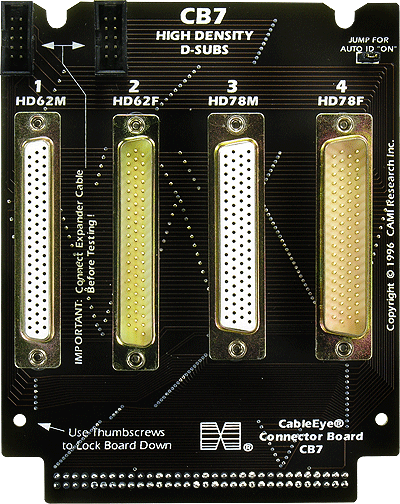

CB7 Connector Board

Digital Control and Communications Applications
Shown Actual Size
NOTE: 192 Test Points Required!

Configuration

Includes connectors for HD62 male and female, and HD78 male (used in digital control systems, factory automation and communications). Connectors have machined, gold-plated pins for many insertion cycles. Requires 192 test points.

1 Expansion Module Required: One (1). Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
