CB28 Connector Board

Molex Mate-N-Lok® Connectors
with 0.163" and 0.250" Pin Centers
Shown Actual Size

Configuration

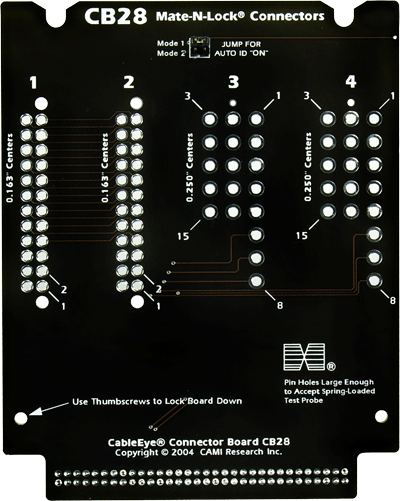

This board includes connector footprints for Mate-n-Lok connectors with 0.163" and 0.250" grid spacing. The footprint patterns were sized so that the largest connector in the family will fit. Refer to example connector configurations below. Because of the wide variety of connectors available for this board and the many possible customer configurations, the board is sold without any connectors. Customers should obtain their own mating connectors suitable for their application from their local AMP/Tyco distributor. Connector graphics automatically size to fit the measured wiring. We designed the board with large-diameter holes on all footprints so that they will accept either standard production connectors or AMP's test probe connectors with wide-gauge spring-loaded pins. Use the test probe connectors to preserve connector life during high-volume production.

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).






Example Mating Connectors Available from AMP:

770848-1, 3-pin Single-Row Socket (female), 0.163 Centers
794327-1, 8-pin Dual-Row Header (male), 0.163" Centers
794072-1, 24-pin Dual-Row Header (male), 0.163" Centers

643406-3, 5-pin Pin Strip (male), 0.250" Centers
194012-1, 12-pin Pin Matrix (male), 0.250" Centers
194013-1, 15-pin Pin Matrix (male), 0.250" Centers

350848-2, 2 Pin Spring-Loaded Test Probe, 0.250" Centers
350848-6, 2x3 Pin Spring-Loaded Test Probe, 0.250" Centers

When ordering connectors, choose post length suitable for a 0.093" thick PCB. This is the board thickness of CB28.

(see photos of Mate-N-Lok family connectors below)


0.163" Center Mate-N-Lok Family


0.250" Center Mate-N-Lok Family

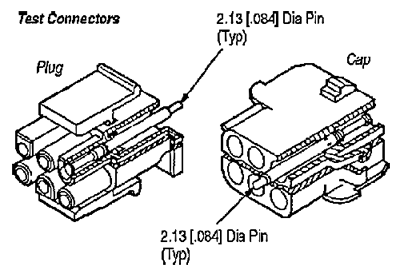

Test Connector with Spring-Loaded Probe Pin
