CB29 Connector Board

64 Screw Terminals with 0.200" (5mm) Spacing
Shown Actual Size

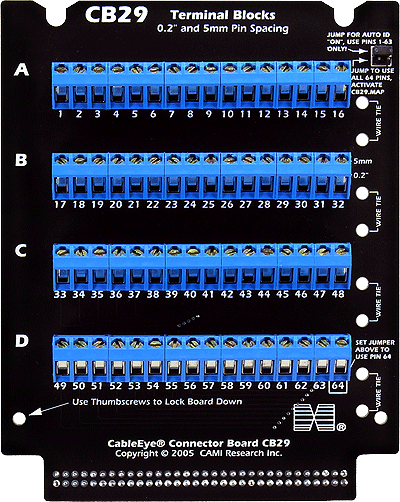

This board has four 16-pole screw terminal blocks (64 terminals total) that will accept bare wires from 12- to 30-gauge in size. The metal jaws firmly grip an inserted wire without damaging or distorting the end. We normally include the terminal blocks shown in the photo below, soldered in place and ready to use. These terminal blocks have 0.200" (5mm) spacing between the contacts. The board may also be supplied without terminals for customer-mounted terminal blocks (order Item 759BB). The board footprint includes hole patterns for 5mm (0.197") hole spacing for each of the four rows, so any type of terminal block with this spacing can be accommodated. The space between each 16-pole terminal block may be used as a wire channel to guide bundles of wires neatly to the side. A pair of holes is provided on the right through which wire ties may be inserted to hold the wire bundles in place. Note: Terminal block color may be either blue (as shown) or black, depending on availability.

2 Set of two boards.

Voltage Rating

Rated for operation up to 1500Vdc/1000Vac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

This board will be shipped with either blue or black connectors, depending on availability.

CB29 Black Connectors
