Item 759H
Previous Item | Next Item

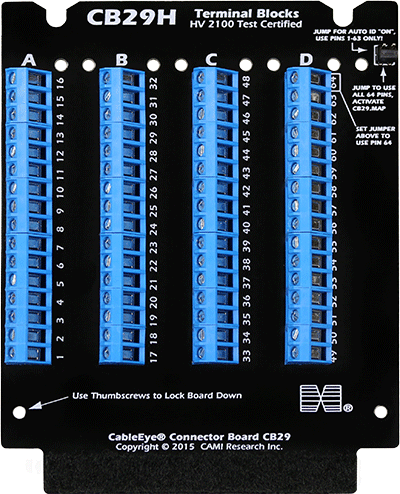

CB29H Connector Board

High Voltage Transition System for Wire Harness Assembly Boards
64 Screw Terminals with 0.200" (5mm) Spacing

Configuration

A higher voltage-rated variation of the CB29 board, with terminal blocks in a different orientation.

2 Set of two boards.

Voltage Rating

Rated for operation up to 2100Vdc and 1200Vac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
Certification is required for boards rated to 2100Vdc that will be operated above 1500V (Item 626H).

CB29H
