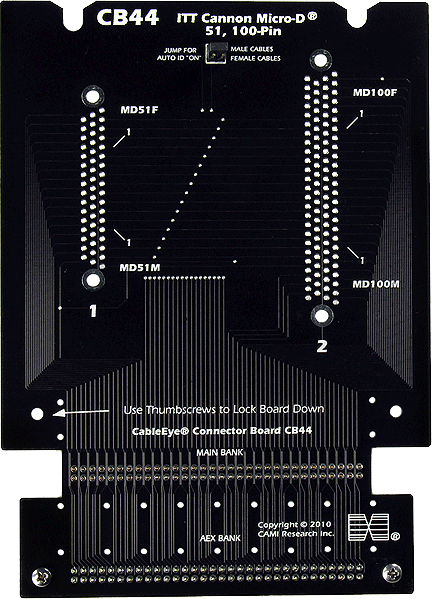

CB44 Connector Board

Micro D 51- and 100-Pin Connectors
One Gender (either Male or Female) for All Footprints
Shown Actual Size

Click for Comparison of CB41-CB44


Like the CB41 and CB42 boards, the CB44 provides connector footprints for Micro D connectors, with the following difference in design: Each board offers one position only for each size, and each board should be populated with either all male or all female connectors. You may either install male connectors on one board and female on the other, or all one gender on both boards. A jumper on the board configures the board for the proper gender. The CB44 offers a footprint for a 100-pin connector, requiring a 256-point tester.

Note: When ordering connectors, choose post length suitable for a 0.093” thick PCB. This is the board thickness of all CAMI CB boards.

Connectors Not Included: Solder Service1 available.

1 Expansion Module Required: One (1). Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

Footprint Reference

Use this pdf document to verify proper footprint for your mating connectors.
