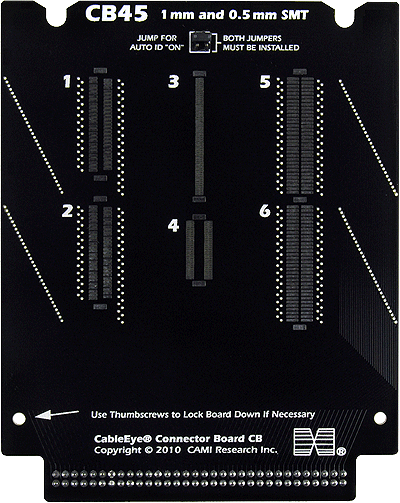

CB45 Connector Board

1mm and 0.5mm Surface-Mount Connectors
Shown Actual Size


The connector positions provided on this board accept single- and dual-row surface-mount connectors with 1mm aligned pins (32 x 32 max), 1mm staggered pins (26 x 25 max), 0.5mm aligned pins (32 x 32), and 0.5mm single-row pins (64 x 1).

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
