CB46 Connector Board

Micro D 100-pin Connectors
Airborn-style Footprint
Shown Actual Size


One connector position provided on this board will accept an Airborn-style 100-pin MicroD connector (6 rows of pins, (16-16-17-17-17-17). Requires 256 test points.

Connectors Not Included: Solder Service1 available.

1 Expansion Module Required: One (1). Not Compatible with M2Z or M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

Footprint Reference

Use this pdf document to verify proper footprint for your mating connectors.

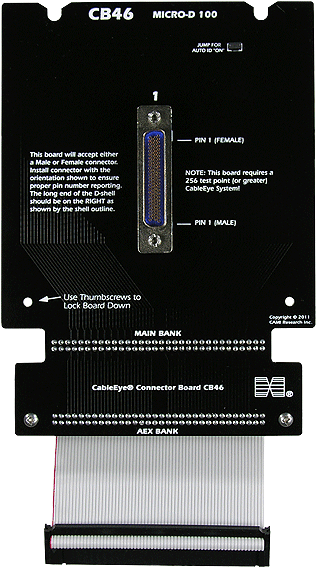

CB46 with Connector

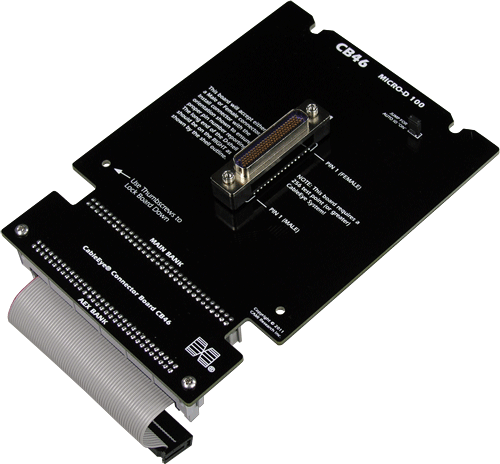

CB46 with Connector
