The CableEye® Connector Designer ™ connector editor software lets you create custom graphic images for unusual connectors not found in our library.


This application aims primarily at the many and varied kinds of circular connectors found in military and aerospace applications and permits you to choose a graphic size, position, and pin numbers, as necessary.





Next Topic | Previous Topic | TOC |


Create a Wire Frame Graphic or Import your own Image

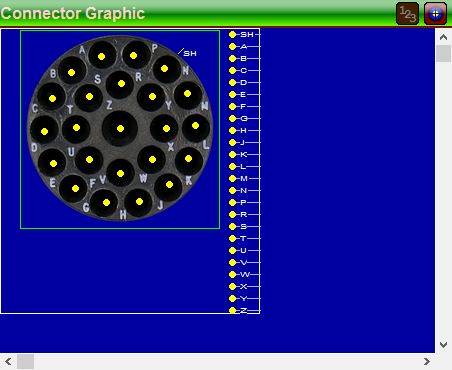

The software will create a wire frame image, or will accept your photographic image of a connector in .png or .bmp form, as shown on the right over which you may apply the pins, and pin numbering, if pin designations don't appear in the photo.




Next Topic | Previous Topic | TOC |


Connector Design and Properties

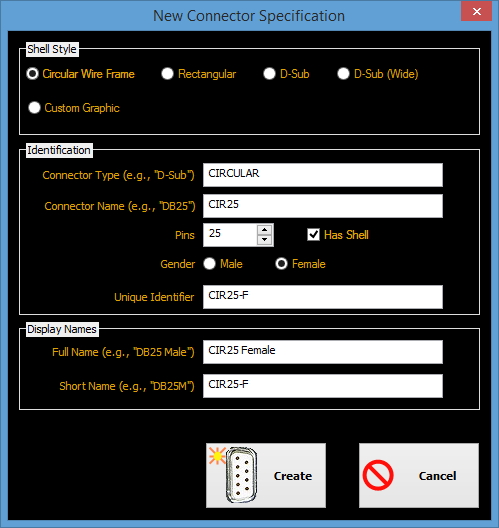

Easily create a new connector by defining its name, shell type, gender and number of pins.

Then define the size of the graphic, gender of pins and the initial position for the reference pins.

All this within seconds!




Next Topic | Previous Topic | TOC |


Position Pins on Wire Frame or Image

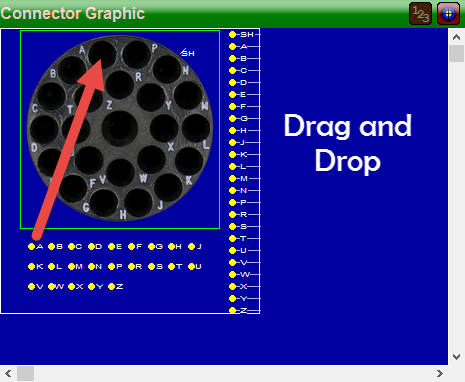

Position the reference pins in different ways. You can drag and drop individual pins using your PC mouse.

You can also click on a pin and use the key arrows in your keyboard to move the pin one pixel at a time, for accurate positioning.

Finally, you can also use the new alignment tools to move several pins at the same time.




Next Topic | Previous Topic | TOC |

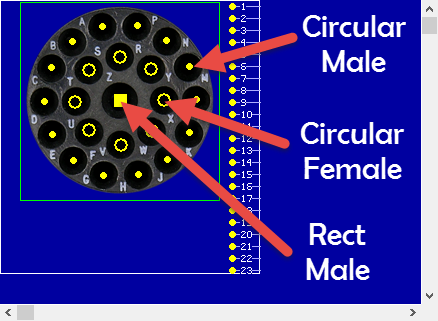

Change Pins Type



You can change the type and size of pins. Mix different pin sizes just by chaging the size of the pin.

Also create those unusual connectors that have a mix of genders and types, like rectangular and circular pins.




Previous Topic | TOC |


Create Pin Patterns



You can easily create pin patterns to match a specific configuration of your connector, without moving every pin individually.

You can create a circle of pins and define the distance between them. You can also create a matrix of n x m with the click of a single button. Then rotate, mirror or move your pattern to align it wherever you need it.
