CB26T: miniHDMI, mDP

News Release

CableEye® Mini HDMI, Mini Display-Port Daughter Board, CB26T

Index

Nov 27, 2015

CAMI Research Inc. (Acton, MA) announces a new daughter board for its CableEye cable and harness testing systems. Populated with mini HDMI and mini DisplayPort connectors, the boards address the computer video market. Rated to 500Vdc/350Vac, the CB26T may be used on all CableEye models.

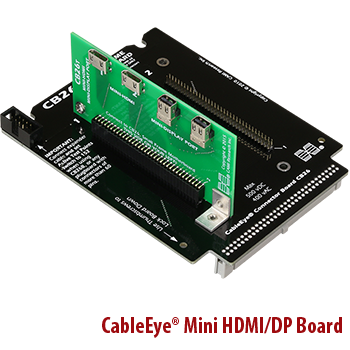

CB26T with CB26
Download Icon

Configuration

A leader in development of PC-based Cable & Wire Harness Test Systems for over 20 years, CAMI offers the CableEye suite of Low and High Voltage products complete with accessories including connector boards. The selection of boards is constantly growing and is currently numbering over 60 – most of which are populated with ‘families’ of connectors.

Sold as a set of two boards, each CB26T accepts two mini HDMI and two mini Display-Port connectors.

It requires the CB26 small-frame motherboard (Item 756) for operation, and plugs into one of two available slots. The CB26 (with CB26T) attaches to the tester like a regular connector board.

Warranty

Connector boards are included in CableEye’s standard, renewable one-year warranty of the tester for which it was purchased. The warranty covers replacement of worn connectors and cleaning of connector boards.

Availability & Domestic US Pricing

Available immediately, a CB26T set is $165 (Item 756T), and requires a CB26 set (Item 756) for mounting.

Contact sales@camiresearch.com or +1 (978) 266-2655 for a quote.

Note: Prices are USA only and subject to exchange rates, freight and import costs. Contact your local authorized distributor for local pricing.

CAMI Research produces expandable and upgradable diagnostic Cable & Harness Test Systems for assembly, prototyping, production, and QC of standard or custom cables. CableEye® Testers display, and document electrical properties such as continuity, resistance, capacitance, dielectric breakdown, insulation resistance, miswires, and intermittent defects.
