CB26U: USB Type-C Test Fixture

News Release

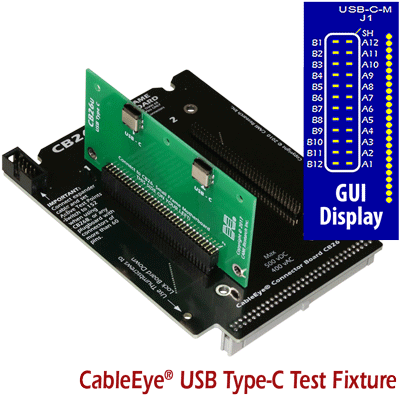

CableEye ® USB Type-C Test Fixture, CB26U

Index

Jul 26, 2017

CAMI Research Inc. (Acton, MA) has released a USB Type-C test interface board for its CableEye cable and harness testing systems. A daughter board, populated with two USB-C female connectors, it allows users to continuity-check USB Type-C terminated cables using the CableEye tester while seeing the connectors-under-test rendered graphically. The CB26U fits all CableEye models.

A set of two boards, each CB26U accepts two USB Type-C connectors. In addition to the latest CableEye software, it requires the CB26 small-frame motherboard (Item 756) for operation, and plugs into one of two available slots – two USB-C-connectors can be tested simultaneously.
Download Icon

Configuration

A leader in development of PC-based cable and wire harness, continuity, resistance and hipot test systems for over 20 years, CAMI offers the CableEye suite of products complete with accessories – including “connector boards”. The selection of these test fixture boards is constantly growing and is currently numbering over 60 – most of which are populated with ‘families’ of connectors. When pre-populated boards are used, the tester GUI automatically displays a graphic of the connectors under test.

Sold as a set of two boards, each CB26U accepts two USB Type-C connectors. In addition to the latest CableEye software, it requires the CB26 small-frame motherboard (Item 756) for operation, and plugs into one of two available slots – two USB-C-connectors can be tested simultaneously. The CB26 (with CB26U) attaches to the tester like a regular connector board.

Warranty

Connector boards are included in the standard, renewable one-year warranty of the CableEye tester for which it was purchased.

Availability & Domestic US Pricing

Available immediately, a CB26U set is $185 (Item 756U), and requires a CB26 set (Item 756) for mounting and the latest CableEye software.

Contact salesREMOVE@REMOVEcamiresearch.REMOVEcom or +1 (978) 266-2655 for a quote.

Note: Prices are USA only and subject to exchange rates, freight and import costs. Contact your local authorized distributor for local pricing.

CAMI Research produces expandable and upgradable diagnostic Cable & Harness Test Systems for assembly, prototyping, production, and QC of standard or custom cables. CableEye Testers display, and document electrical properties such as continuity, resistance, capacitance, dielectric breakdown, insulation resistance, miswires, and intermittent defects.
