Insourcing Cable Manufacturing and Testing

How Found Its Perfect Match with the CableEye Tester from CAMI Research

by By James Louw,

Image of Wottz Type 2 EV connector.


A Rewarding Journey for an EV Charging Cable Manufacturer is a global leader in EV charging cables, providing the widest range of Type 1, Type 2, Type 3 and Vehicle to Load cables, as well as EV parts and accessories. Part of the Wottz group, operates out of Marlow in England and manufacturers over 5000 cables a year, selling direct to consumers through its online store and supplying fleets such as Scottish and Southern Electricity Networks (SSE) and charge point manufacturers such as Simpson & Partners. Using our digital testing unit, we run a suite of tests on every completed cable to ensure it’s safe, reliable and compliant.

When it comes to manufacturing high-quality electric vehicle cables, there’s no room for compromise. This is a sentiment we live by at Eighteen months ago, we undertook the mission of insourcing all our cable manufacturing and having a reliable test suite in place was paramount before we could start full-scale production. No matter how good our processes or technical staff are, exceptions always happen; whether it be miscut lengths, damaged contacts, compromised insulation or simple assembly error. There is no way of avoiding these, but what we can do is test all points of failure on every cable to ensure the quality of our product when it leaves the factory. What we required was an automated tester that could evaluate all these failure modes with a simple press of a button.

After a methodical selection process, we decided to go with the CableEye® Tester from CAMI Research. Here, we describe how we did that, and (in Part II) what tests have been implemented.

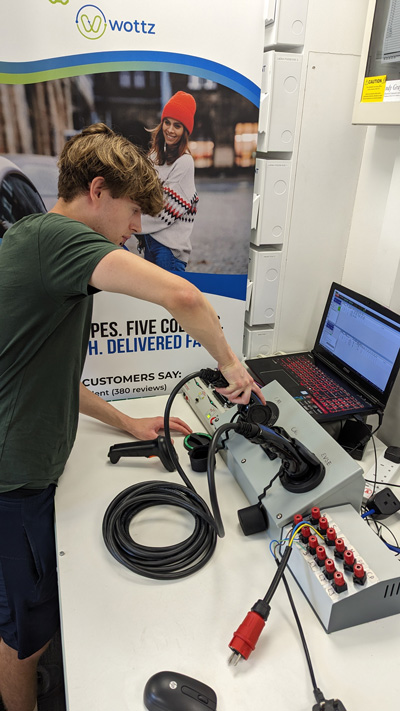

EV Cable under test with a CableEye tester

Fig. 1: Testing an EV Cable with the CableEye Tester

Identifying Our Requirements

Before even looking at potential vendors, our team coordinated to identify the specific requirements we had. We considered the types of electric vehicle cables we would be testing, the number of points that needed to be examined, and the specific tests needed to be performed, namely: Insulation resistance testing, continuity testing, 4-wire Kelvin low resistance testing, phase orientation and intermittent fault testing.

Regulatory Checks

Given the nature of our products, compliance with industry-specific quality standards was a top priority. Our quality assurance team made sure to list out all the regulations and standards we needed to meet, namely: IEC 62196, IEC 61851, BS EN 50620, The Electrical Equipment (Safety) Regulations and the Low Voltage Directive.

Vendor Hunt and Technical Checklists

After initial preparations, we identified several vendors, one of which was CAMI Research. To streamline our search, we used a technical checklist that acted as our roadmap in comparing the CableEye Tester against others in the market.

Demos and Quotes

Steve Hooper at Cimbian (distributor of CableEye products for GB) was incredibly cooperative, offering us a comprehensive demo of the CableEye Tester. The demo proved valuable because we could check off numerous criteria on our technical checklist during this hands-on experience. For the couple weeks we had the demo unit, we could verify integration into our production workflow, create connector resources that we used in our map files and assemble our test rig, which we would use at our test station. Cimbian provided a comprehensive quote for not only the main test unit, but also all ancillary parts needed to get our project live.

Software and Ease of Use

The CableEye Tester came with fully customizable software that allowed to create different connectors, pin maps and automated test procedures through the macro editor. With a few days of work using the comprehensive guides offered by CAMI research and with the help from Steve when we got stuck on some of the trickier problems, we were able to fully implement an automated test procedure that utilised scanning in barcodes and saving the test results into a database.

EV Cables Custom Connector Maps

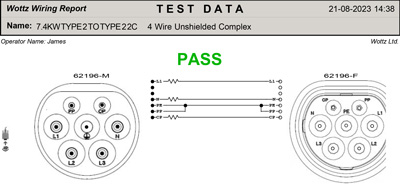

Fig. 2: Custom Connector Maps

Warranty and Support

An extensive warranty and excellent customer support were the cherries on top. CAMI Research offered a robust warranty and promised continuous support, reassuring us of a long-term partnership. This was highlighted best when it came time to recalibrate our tester after the first faultless year of use. As the tester is used everyday in our production we couldn’t afford to not have it available for any length of time. We managed to ship the tester out on the Friday for Saturday delivery, Cimbian performed all necessary calibration procedures and we collected on Sunday afternoon, Monday we were up and running with no production lost.

Making the Final Decision

Considering the technical fit, budget alignment, and additional perks, the CableEye Tester, Model HVX, from CAMI Research checked all our boxes. We reviewed the contract meticulously before signing off on what was a crucial investment for

Selecting a cable tester is no small feat, but thanks to a well-defined process, we found our perfect match with the CableEye Tester from CAMI Research. It has already made a significant difference in our production quality, and we look forward to reaping its benefits for years to come. We describe a few of the more significant tests that we perform in Part II (appearing in next issue).


Testing EV Cables

In Part I, we looked at the process we took to select a cable tester, on deciding to insource our cable manufacturing and testing. Here, we discuss a few of the more significant tests that we now perform with that system.

Safety Critical Tests

EV charging cables pose a unique risk in that the safety systems are inbuilt into the cable which prevent over current conditions during charging. This is handled through a coding resistor embedded in each plug that tells both the EVSE (Electric vehicle supply equipment) and EV (Electric vehicle) the maximum current capability of each cable conductor. It is therefore paramount that these resistors are correct and inspected in every cable made. The CableEye unit not only allows us to inspect these resistors but compares them against tolerances defined in the relevant standard IEC 61851 (Table 1).

An image of a medical catheter tested with CAMI's cable testing equipment.

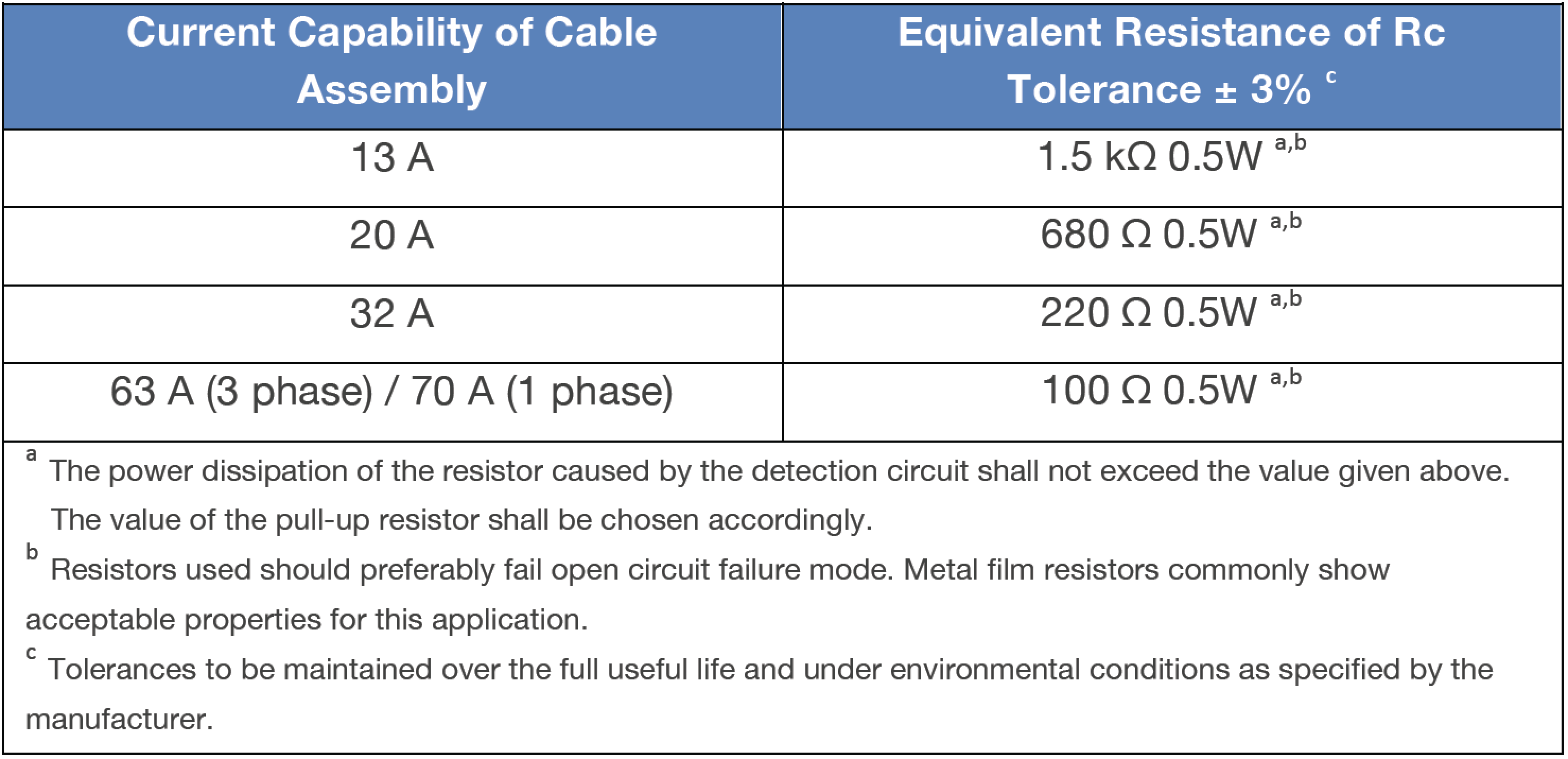

Table. 1: IEC61851 Resistor coding for vehicle connectors and plugs

Rapid Prototyping

The EV charging landscape is ever changing and at we aim to supply our customers with current and future charging solutions. NACS (North American Charging Standard) is the future of EV charging in North America. It is a standard that has yet to be ratified by SAE. We at were able to not only develop working prototypes of future connectors but also create relevant test suites that can evaluate the performance of connectors and electrical contacts that are still in development and feed this valuable test results back to our component suppliers to accelerate our designs and reduce our time to market; all this even before the J3400 has been published.

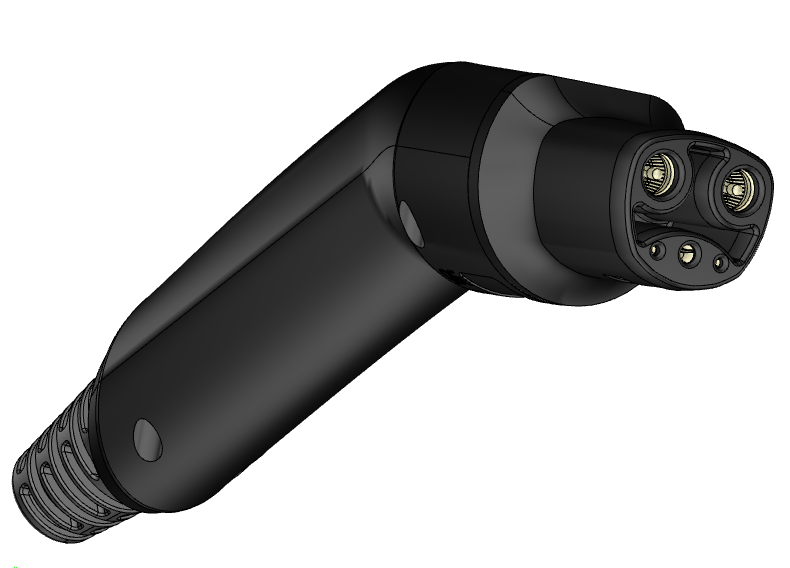

Image of Wottz NACS EV connector.

Fig. 3: Wottz NACS connector

4-Wire Kelvin Testing

At we see ourselves as a bespoke manufacturer, spearheading a Made To Order approach with next day fulfillment for all sales from our online store. We do not run any series production of any of our lines and thus do not hold stock of any length of pre-built cable. We have a unique challenge to overcome, which is ensuring that the cable we ship to our customer is of the correct length within 5% cutting tolerance.

When every cable made is a different length to the previous cable we required a robust way of detecting a cable of incorrect length. This is where the CableEye 4-wire Kelvin testing at 1 A differentiates itself from the competition. With a sensitivity of one milliohm, the CableEye system gives us the ability to detect varying cable lengths even with a conductor core area of 6mm2.

With our tests preloaded with values that we have learned from many thousands of cables manufactured, we can detect a cable that is too long/short from what a customer ordered. The 4-wire Kelvin testing also gives us the ability to detect crimp failures, whether that be a crimp onto insulation or detecting a crimp failure due to our hydraulic crimper shearing a bolt which caused it to not reach full crimp pressure (true story).

We also use 4-wire Kelvin testing to detect that correct size copper conductor was used. The sensitivity of this test is unmatched and allows to offer a product with confidence that is not only compliant but at the exact specification requested by the customer.

Resistance of Copper Conductor

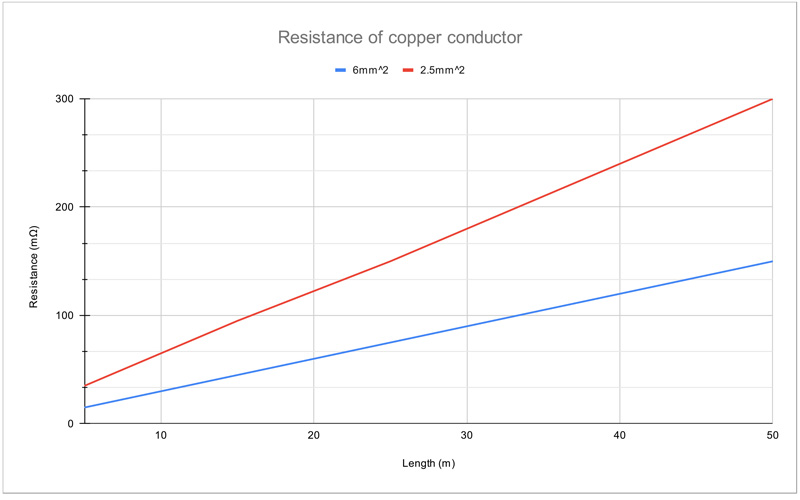

Fig. 4: Graph comparing different conductor resistances over length


Eighteen months ago, we engaged in a business process shift from outsourcing to insourcing the manufacture of our EV cables. Inevitably, this required us to grow our own competency in testing cables. The first phase (ref. Part I of this article) focused on the selection and acquisition of an accurate and dependable test system capable of meeting industry-specific quality standards.

Since rolling out the new test system, we have achieved an output of 500 cables per month, increased sales by 50% year on year, and seen a 98% decrease in returns related to manufacturing defects. We are well on the way to shipping 6000 in 2024. We are pleased that our decision to insource EV cable manufacturing and develop in house testing has been so successful.

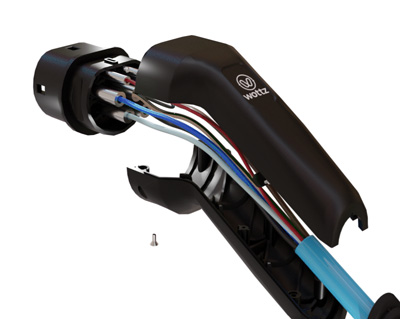

Image of Wottz Type 2 EV connector.

Fig. 5: Wottz Type 2 Plug

The Players

Image of Wottz Type 2 EV connector.

Introducing — Engineered for Excellence. As the burgeoning electric vehicle (EV) market demands increasingly sophisticated charging solutions, we step in as a leading provider of high-quality, eco-friendly, and customisable EV charging cables and accessories. Designed by a team of engineers, our products meet the highest standards of safety, reliability, and efficiency. Our commitment goes beyond just delivering exceptional products; we aim to be a knowledge resource and strategic partner for stakeholders in the electric vehicle ecosystem, including fleet managers and engineers like yourself.

With a strong ethos of innovation, sustainability, and customer-centricity, we are dedicated to contributing to the global transition toward cleaner, greener transportation solutions. When you choose, you're not just opting for a product, but for a long-term partnership committed to driving innovation in the EV charging infrastructure.

CAMI Research produces highly versatile Cable & Harness Test Systems for countless applications in Transportation, Energy, Medical Devices, Defense, Scientific R&D, Telecom, and more. Used for assembly, prototyping, production, and QC of standard or custom cables, CableEye® testers accurately display and document electrical properties such as continuity, resistance, dielectric breakdown, insulation resistance, miswires, twist pair relationships, and intermittent faults.

Since 2003 Cimbian UK has been bringing assembly and cable testing tools and technology, along with support and know-how, to UK businesses. We find the very best solutions; invest in training and support to deliver to the UK as a full-services provider
