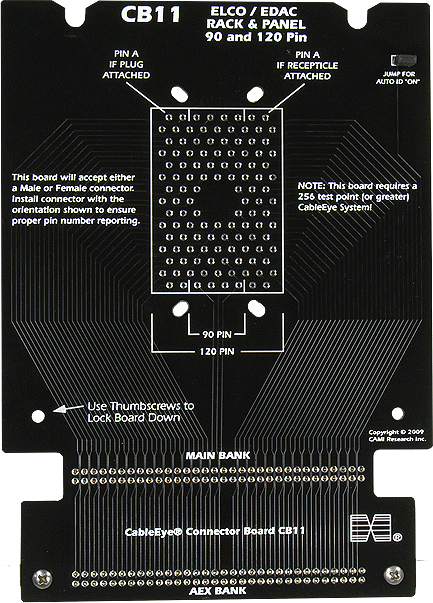

CB11 Connector Board

Elco 90- and 120-pin Rack & Panel Connector
Shown Actual Size

Configuration

The one open connector position provided on this board will accept either a 90- or 120-pin Elco/Edac Rack & Panel connector of either the male or female type. Requires 256 test points.

Connectors Not Included: Solder Service1 available.

1 Expansion Module Required: One (1). Not Compatible with M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
