Item 740
Previous Item | Next Item

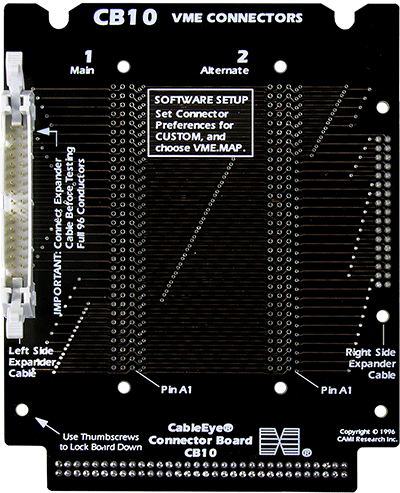

CB10 Connector Board

VME Bus and Europadon Cables
Shown Actual Size
NOTE: Expansion Module Required for Connectors Larger than 60 Pins!

Configuration

Each board has positions for two DIN-standard VME connectors (0.1 x 0.1” centers). Both positions are left open for User installation of desired connectors. Footprint consists of three columns of 32 pins each with 0.1” (2.54mm) pin grid spacing, 0.032” (0.081mm) hole dia. Requires 192 test points to test 96-conductor cables. When mounting 64-pin connectors on this board (columns a and c), an expansion module is not necessary and any tester may be used.

Connectors Not Included: Solder Service1 available.

1* Expansion Module Required: One (1) only when pincount > 64. Not Compatible with M2U-Basic when pincount > 64.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
