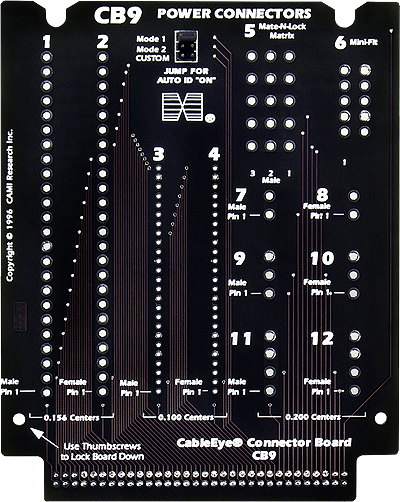

CB9 Connector Board

Power Supply and Control Cables
Shown Actual Size

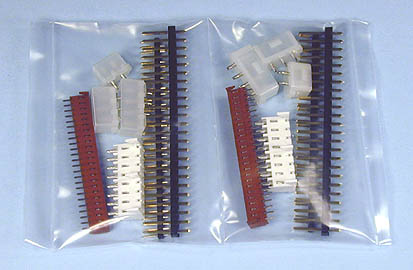

Includes connector positions for Molex strip headers and sockets (both 0.156” and 0.100” centers) up to 25 pins, AMP MATE-N-LOK® connectors (2-, 3-, and 4-pin male and female), AMP MATE-N-LOK® Matrix connectors (male, up to 15-pin), and Molex Mini-Fit™ (male, up to 10-pin). Because power connectors come in many different arrangements, we provide a standard set of connectors in a separate package, unsoldered, so you may configure the board to best suit yourw needs. For each board, the unmounted connector package includes a Molex 24-pin breakaway header strip (0.156” centers), a Molex 25-pin breakaway header strip (0.100” centers), a Molex 13-pin header socket (0.156” centers), a Molex 25-pin header socket (0.100” centers), and MATE-N-LOK® male 2-, 3-, and 4-pin headers (for female cables). Software for connector graphics self-adjusts to measured wiring.

Connectors Included: Unsoldered. Matrix connectors are not included in the kit.

2 Set of two boards.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
