Item 742
Previous Item | Next Item

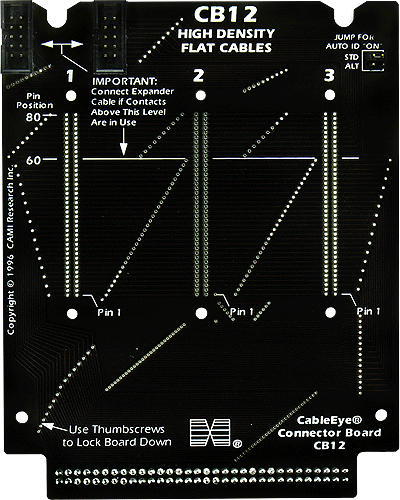

CB12 Connector Board

High-Density IDC Flat Cables
Shown Actual Size
NOTE: Expansion Module Required for Connectors Larger than 60 Pins!

Configuration

Test high-density flat cables with IDC wiremount sockets (0.025" wire centers, 0.050 x 0.100" pin centers). Three 80-pin positions are available on each board. Standard header sizes are: 80, 68, 60, 50, 40, 34, 30, 26, and 20 pins. For 3M-style connectors (side-release latches), the board will accommodate any THREE sizes. For Thomas&Betts connectors (front-release latches), any two of the smaller sizes (40, 34, 30, 26, and 20) may share a single position.

Connectors Not Included: Solder Service1 available.

1* Expansion Module Required: One (1) only when pincount > 60. Not Compatible with M2U-Basic when pincount > 60.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).





Pads Spacing
CB12 Pads
