CB31 Connector Board

METRAL Connectors
NOTE: 256 Test Points Required!
Shown Actual Size

We designed the CB31 for METRAL ® connectors (manufactured by FCI) which have 4x24 and 5x6 pin layouts on a 2mm grid. Easily solder in your connectors of the needed sizes. When using 4x24 (96-pin) and 5x6 (30-pin) connectors with the Auto-ID jumper in place (see Photo 2 below), the CableEye software automatically assigns the pin numbers as defined by the manufacturer for connectors of these sizes. For smaller connectors, use the optional PinMap™ fixture editor software (Item 708) to select an appropriate graphic and assign pin labels. Requires 256 test points.

Link to Connector Manufacturer Web Site: http://www.fciconnect.com/electrical-connector/metral.htm

Connectors Not Included: Solder Service1 available.

1 Expansion Module Required: One (1). Not Compatible with M2U-Basic.

2E Set of two boards with expander cable.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

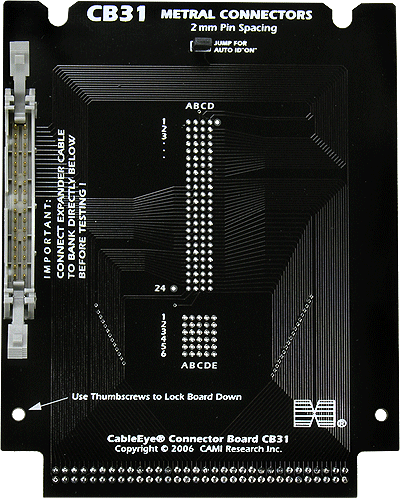

1 - CB31 is shipped without connectors installed as shown here.

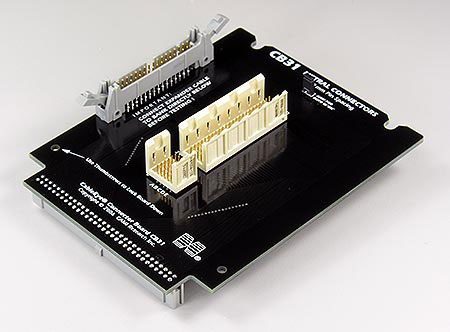

2 - The board appears as shown here with 4x24 and 5x6 connectors installed.
FCI 4x24 Connector: Part Number 88953-101
FCI 5x6 Connector: Part Number 89006-110
