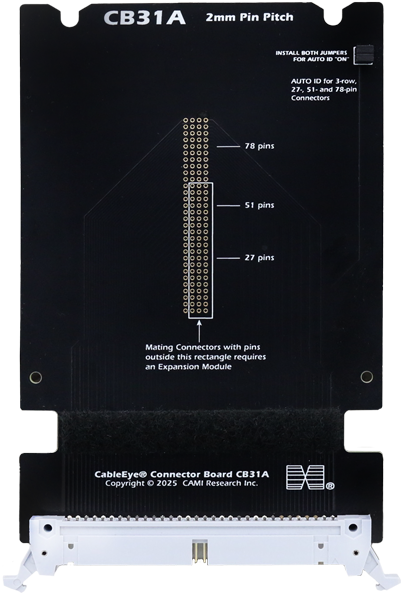

The CB31A fits connectors with a 2mm pitch footprint. With a matrix of 4 x 30 pins, the board can accomodate any rectangular matrix combination up to a 120-pin connector. For connectors that can fit inside 3 x 20 pins, an expansion module is NOT required. A tester with 256 TPs and expander cable (included) is required for connectors bigger thana 3 x 20-pin matrix. Use the optional PinMap™ fixture editor software (Item 708) to select an appropriate graphic and assign pin labels. Requires 256 test points.
Connectors Not Included: Solder Service1 available.
1 Expansion Module Required: One (1) for connectors > 3 x 20-pin matrix. Not Compatible with M2Z or M2U-Basic for connectors requiring expansion module.
2E Set of two boards with expander cable.
1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.
IDRequires software release Build 1954 or later to enable Auto ID.
Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
