CB49 Connector Board

Micro-MaTch ® Connectors

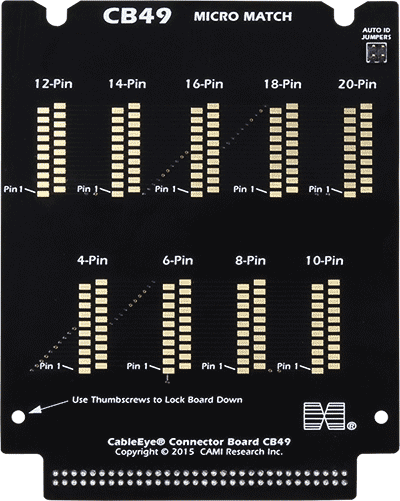

Nine 20-position SMD connector footprints are provided for customer installation of the desired connector sizes. Footprints are labeled for standard sizes ranging from 4 to 20 pins, and an auto-ID map is provided for these. However, the user can create a custom map, if desired, for any combination of connectors. Connector positions for Micro-MaTch 4, 6, 8, 10, 12, 14, 16, 18 and 20-pin size connectors.

You can solder any connector size in any position if needed (requires PinMap™ optional software to show proper graphics when doing this).

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.


IDRequires software release Build 1245 or later to enable Auto ID.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).

Micro-Match CB49 Connector Board
