CB51 Connector Board

1.25 and 1.5 mm Pitch Connectors, up to 60 pins.

Configuration

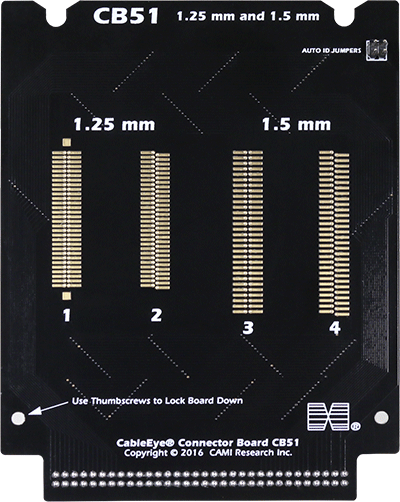

Contains four sets of 60 solder pads accommodating numerous configurations of surface mount and through-hole connectors – aligned or staggered pins at 1.25 mm and 1.5 mm pitch. There are four preset locations for automatic detection & display of any-pin-count connector up to 60-pins. Any single set may be fitted with any combination of lower pin count connectors that total to 60 or less (e.g. a 40-pin with a 10-pin). Connectors soldered in non-preset positions will also appear graphically correct once they are mapped with PinMap™ optional software.

Connectors Not Included: Solder Service1 available.

2 Set of two boards.

1 SOLDER SERVICE: We mount connectors that you supply. Test is only possible, and included, if you are able to supply us with test cables. Test cables will be returned. When ordering connectors, choose post length suitable for 0.093” thick PCB - the thickness of all CAMI CB boards. Contact us for pricing.

Software

IDRequires software release V6 B1754 or later to enable Auto ID.

Voltage Rating

Rated for operation up to 500 Vdc/ac.
Can be certified for operation at the maximum rated voltage for a service fee (Item 626).
