Continuity & Resistance Cable Testers

CableEye® Low Voltage, Cable & Wire Harness,
Continuity Test Systems

From 128 Test Points
M3/M4 Expandable to 2560 Test Points

Low Voltage Cable Testers
M2Z, M3Z, M4


All testers ship with standard operating software, probe, CB-T2.

  • Scan for Continuity (Opens, Shorts, Miswires, Intermittent Connections)

  • Measure above, resistance, and check quality of intended connections and non-connections (M3-series and M4)

  • Measure all above, capacitance, twist pair relationships, wire/cable length, and length to fault (open/short). (M4)

  • Dynamic, graphic-rich Netlist/Wiring display:
    • Confirm diode orientation
    • Set asymmetric tolerances in absolute or %
    • Over 500 connector graphics included
  • Out-of-the-box, customizable & printable color reports

  • Multilingual navigation screens, reports & labels

  • PASS/FAIL check or diagnostic GUI screens - your choice

  • Quick-change, automatically-detected CB boards:
    • Over 60 different stock boards accommodate well over 200 standard connector types
    • Universal CB8 board for prototyping and circular connectors, or CB28 for bare wires
    • CB15 set included

  • All control modules, except the M2Z, handle cables of up to 76 conductors and are expandable:
    • Layer one or more 128-point expansion modules under control module, to accomodate larger cables

  • M2Z control module handles cables of up to 64 conductors and is not expandable

  • 9x12" bench footprint

  • Declaration by Manufacturer CAMI Research Inc.




Item 814, M2Z
Continuity Tester
128 TPs, non-expandable

Item 826, M3Z
Resistance, Connection Quality, and Continuity Testers
128 TPs plus 24 Accessory Points, expandable

Item 824, M4
Capacitance, Twist Pairing, Resistance, Connection Quality, and Continuity Tester
128 TPs plus 24 Accessory Points, expandable




Accessory Options:

Item 765*, Relay Control Board (for external digital control)

Item 879, Environmental Sensor

Item 755A, 778A/B, 868, Header Isolator  Protective Adapters

Item 704G/H/K, Pelican Case


Software Options:

Item 708*, PinMap Fixture Editor

Item 707, Connector Designer Connector Editor

Item 860, Standalone Software License

Item 709, Exporter Software

Item 730, Win32/.NET API Software License with LabWIEW  Interface


* Not compatible with M2Z testers.






Request for Quote

+1 978 266 2655

Continuity Cable Tester: Dynamic Netlist and Wiring Display

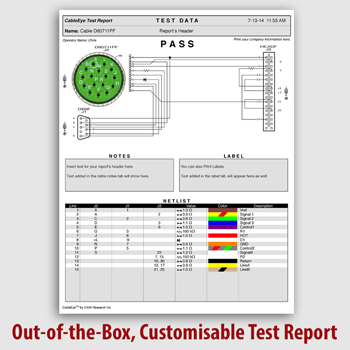

Continuity Pass test report with schematic & netlist Low Voltage Series Cable and Wire Harness Testers
Harness tester comprising a Control Module with several attached expansion modules and test interface fixture.

Expanded Low Voltage System:
Wire Harness Tester with Test Interface Fixture

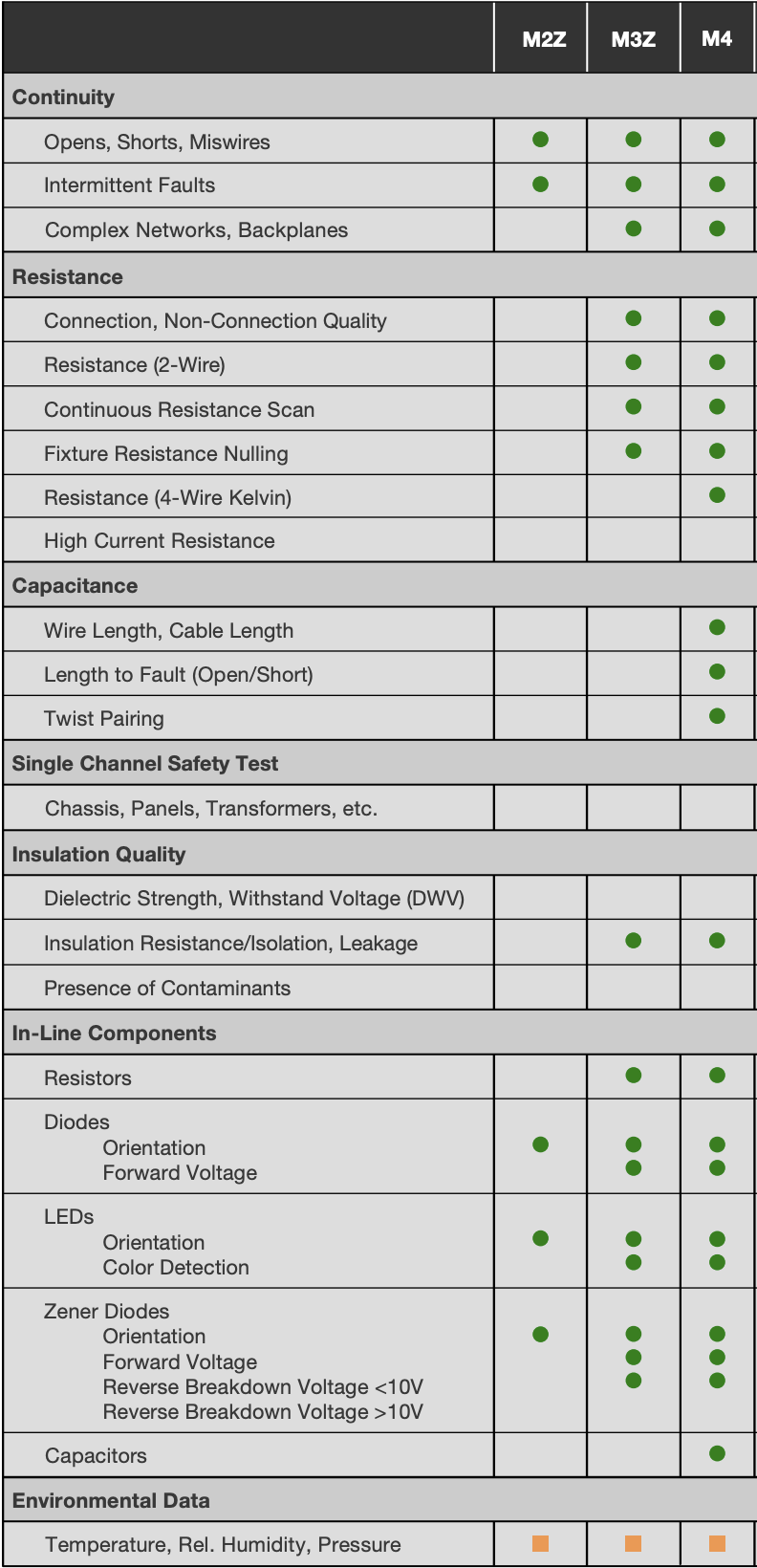

Low Voltage Series Cable and Wire Harness Testers detailing possible Continuity, Resistance, Capacitance, and In-Line Component Tests.
