Video Demonstrations/Tutorials

CableEye - The Future-Ready Cable Test System

Discover how to design, test & document cables, harnesses & more with CableEye continuity & HiPot test systems, and learn how to automate your tests and prepare ISO9001-quality reports. Watch these video tutorials with live examples; Each clip describes one basic function of the CableEye software. You may view the videos in any order, although you should watch them sequentially to get the greatest benefit. Note that the CableEye software is a common platform to all CableEye testers, so once you've learned to operate one model of CableEye tester, you've learned to operate them all!

Display Notes: The videos are shot using the CableEye software in Control Mode and with English selected as the screen language. This Control Mode is the view that the CableEye Test System Manager uses to access all system options and to program the tester. There is also a Production Mode that displays only a limited set of essential controls and information to the production worker and which can be activated with a single click or barcode reader. A screenshot example of this Production Mode Screen is shown below. Additionally, the CableEye Test System Manager can program the tester to display a pop-up window with detailed operator Work Instructions containing text, photos, interactive buttons, and triggers to open additional resources such as video, schematics, parts lists and BOMs. The Work Instructions Display can be programmed to fill the screen, and to let barcode readers input data and activate tests. You can choose the exact amount of detail, imagery, language and automation you need to ensure your work instructions and tests are carried out flawlessly.

Problems watching these videos in your browser? Check them out directly from our YouTube Channel

Click here to see other videos demonstrating capabilites of CableEye testers:

Checking for intermittent connections by stressing a connector

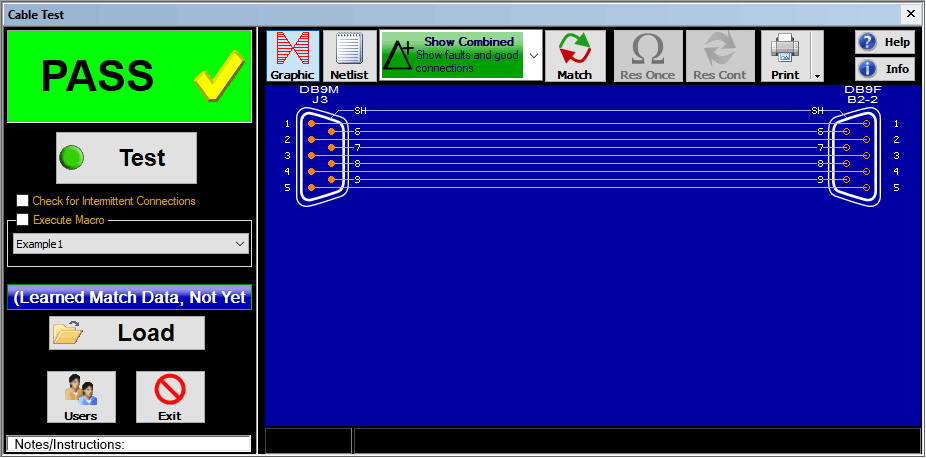

Production Mode Screen

1 - Measuring a Cable

Introduction to the CableEye Software. How to manually measure a cable on any CableEye tester.
Video Duration: 5:39 min

2 - Learning a Model Cable

Connect a master cable to the CableEye tester and learn it.
Video Duration: 3:00 min

3 - Comparing Two Cables

Compare a loaded "master" cable with a tested one.
Video Duration: 4:47 min

4 - Testing for Intermittent Connections

Flex the cable to test for intermittent shorts or opens.
Video Duration: 4:55 min

5 - Saving Cable Data

Once a master cable is created, save it to the database to use it as reference later.
Video Duration: 3:12 min

6 - Searching the Database

Connect a cable and test it, then check if an identical or similar cable exists on the database.
Video Duration: 4:35 min

11 - Adapting to Custom Test Fixtures

Build your own custom interfaces to connect to the CableEye system.
Video Duration: 3:08 min

15 - Speech Probe

Test single ended cables or identify flying wires using the provided test probe.
Video Duration: 4:29 min

16 - Light Director - 1st Sided Pinning

Guided assembly for pinning connectors. Reduce miswire errors and improve pinning speed.
Video Duration: 6:46 min
Warning: The videos shown below belong to software version 4 or older. Current version is 6.1

7 - Printing Schematics and Labels

Print your Match / Test reports and labels.
Video Duration: 3:46 min

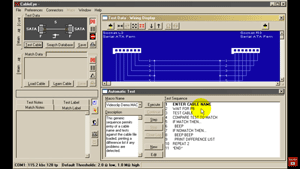

8 - Automatic Testing

Automate your test station. Learn how Macros work.
Video Duration: 4:36 min

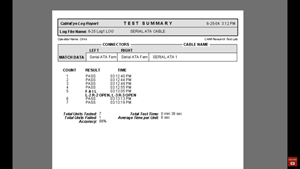

9 - Data Logging

Batch testing using macros and Log/Batch Reports
Video Duration: 6:21 min

10 - Wirelist Editing and Cable Design

Manually create a new cable or edit an existing one.
Video Duration: 5:53 min

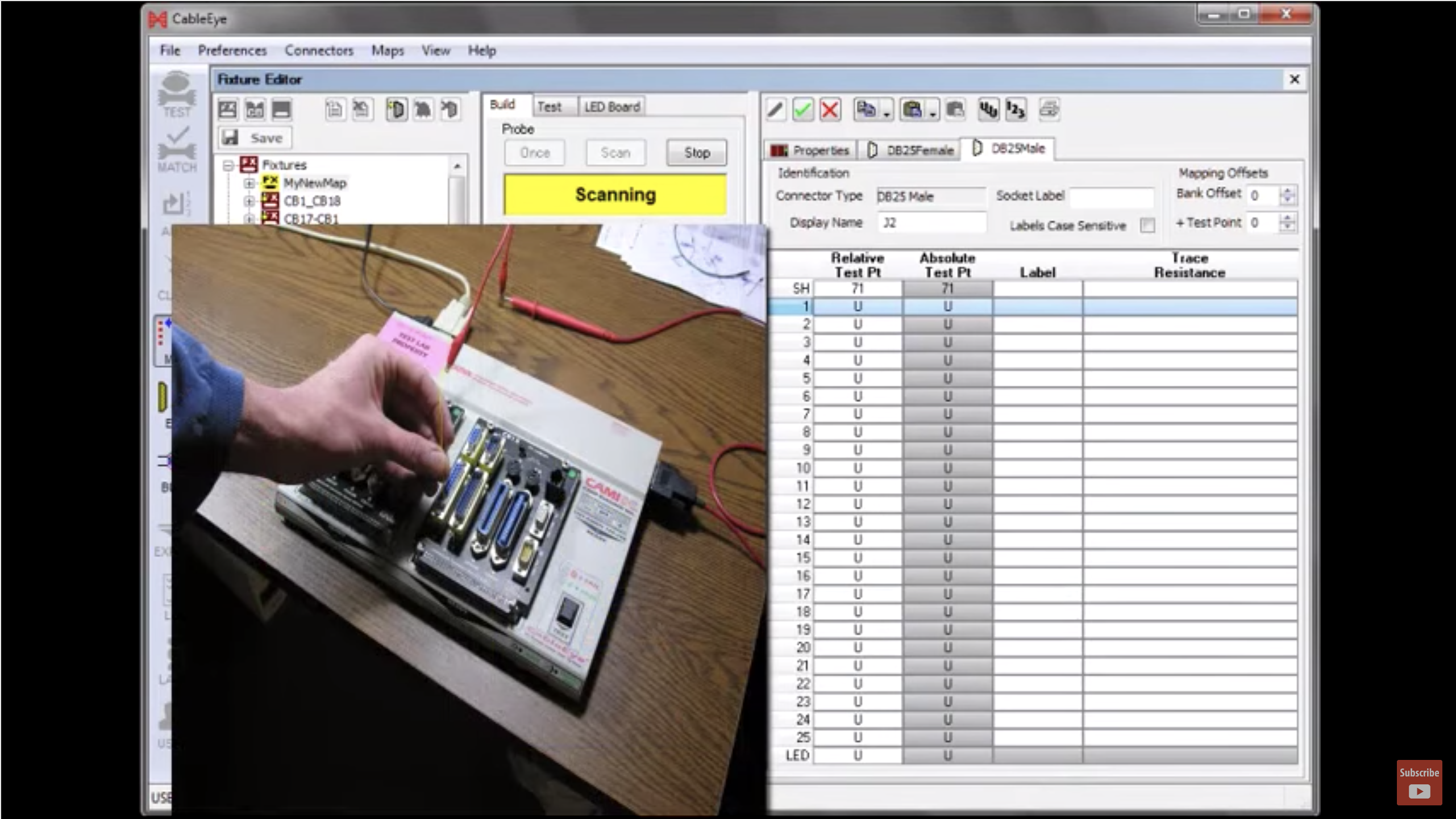

12 - Linking the Software to Custom Interfaces

Learn how to use the optional PinMap™ fixture editor software to link your custom interfaces to your CableEye test system.
Video Duration: 6:59 min

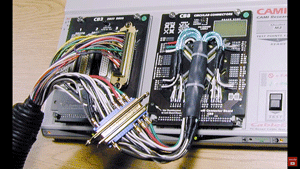

13 - Testing Wire Harnesses

Test complex wire harnesses with the CableEye cable test and management system.
Video Duration: 5:16 min

14 - USB vs. Serial Speed Demo

Compare the difference in speed between our old serial tester and a USB tester.
Video Duration: 4:32 min

17 - Light Director - 2nd Sided Pinning

Guided assembly for pinning connectors. Reduce miswire errors and improve pinning speed.
Video Duration: 7:15 min
