Whether the audience constists of operators, technicians, engineers, or managers, CAMI's Cable & Harness Testing training will ensure your staff members are primed to be more creative and productive. Our training offerings are described below. Sessions vary in content and time, as they are dependent on your group size, and level of experience. For training through independent study, scroll to the Independent-Study section at the bottom of this page. Whenever possible, we recommend following the Knowledge Base Recommendation laid out there prior to participating in Instructor-Led Training.

Instructor-Led Training: Remote

Attend professional development courses at your own workplace without incurring the cost of downtime while travelling or the cost of travelling itself. We are pleased to offer you live, interactive, group training. Set up your tester, computer, and speaker phone in the comfort of your own conference room, and we connect remotely to this training tester via remote-support software (Teamviewer is embedded within your CableEye tester). Truly interactive, at times we will operate your tester by way of demonstration, at other times we will observe and instruct as you do so.

Latest software required. Internet access via remote-support software required.



cable & harness testing courses in the comfort of your own conference room.

Live Travel-Free Training via Embedded Remote-Support Software


Instructor-Led Training: Open Registration Classes

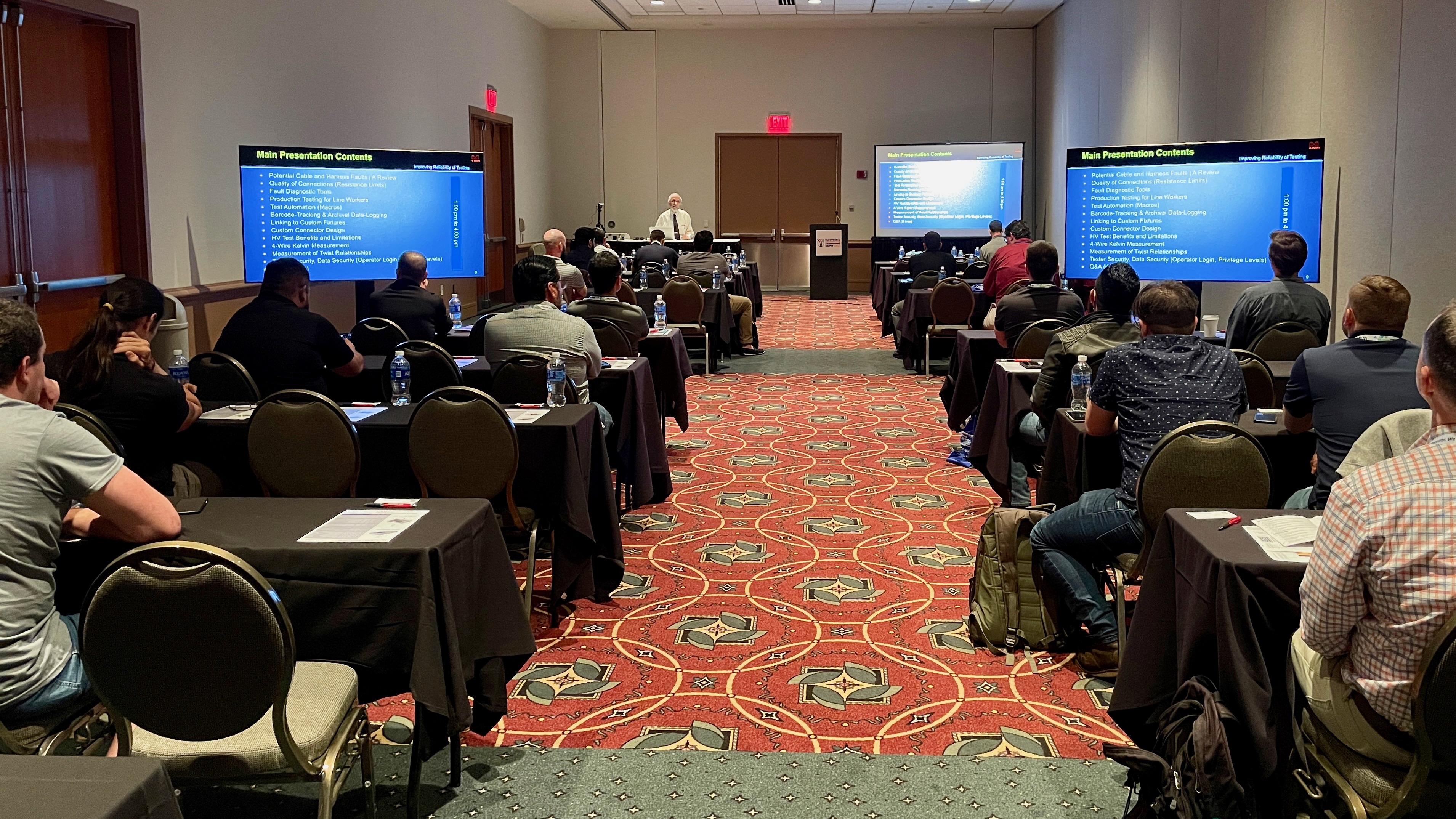

Look for our open registration training sessions held at the annual Electrical Wire Processing Technology Expo in Milwaukee.



Instructor-Led Training: Topics

Topics typically covered - and always tuned to your needs - are:

Cable & Harness Testing Training Topics
Basic tester functions
Test documentation
Real-time screening for intermittent connections
Cable resistance limits
Production testing for unskilled operators
Operator login and privilege levels (Data Security)
Diagnostic tools
Automating tests, automation scripting
Barcode-tracking, archival data-logging
Testing installed cables (loop test)
High voltage test benefits and limitations
4-wire Kelvin measurement
Custom connector design (Connector Designer™ connector editor)
Linking custom fixtures/panels/adapters to test software (PinMap™ fixture editor)
Protecting your tester


Sample Basic-Level Training Session
TopicSub-Topic
Cable Faults and How a CableEye Tester Indicates Them Wiring Error (missing wire, misconnection, short circuit)
High Resistance (bad crimp, bad solder joint, broken wire)
Leakage between Pins (Causes: moisture, solder flux residue)
Insulation Breakdown (operating voltages above 50Vdc)
Broken Shield (all wires intact, but shield broken or compromised)
IDC Connector Problems
Intermittent Connections
Others (more esoteric)
Intro to Low Voltage Testers Tester Models and Boards
Test Data, Match Data, Database
Comparing Wiring, Showing Wiring Errors
Resistance Measurement, Resistance Tool
Checking for Intermittent Connections
Using the Probe
Test Reports
Automatic Testing
Simplified User Interface Screen
Labels, Label Printing
Barcode Scanning;
Multinode Resistance Setup
Custom Interfaces for Cables & Wire Harnesses (if time permits)


Sample Advanced-Level Training Session
TopicSub-Topic
What is "High Voltage Testing" and why is it important? Wiring Error (missing wire, misconnection, short circuit)
High Resistance (bad crimp, bad solder joint, broken wire)
Leakage between Pins (Causes: moisture, solder flux residue)
Insulation Breakdown (operating voltages above 50Vdc)
Broken Shield (all wires intact, but shield broken or compromised)
IDC Connector Problems
Intermittent Connections
Others (more esoteric)
Kinds of problems that HV testing can detect in cables and how to set-up your tester to detect them. Insulation failure due to impurities in insulation, air gaps, embedded moisture
Inadequate insulation
Insulation failure due to impurities in insulation, air gaps, embedded moisture
Benefits of testing low voltage cables at high voltage What is considered "low voltage" and high voltage?
Detects clearance problems
Finds trace contamination and moisture
Risks of testing at high voltage Can high voltage testing damage a cable or connector?
Is there a danger to the operator?
Testing long cables at high voltage
DC hipot vs. AC hipot AC capacitive surge, heat generation, and breakdown Tunneling, cascading breakdown more likely with AC
Demonstration Operator Login for HV Testing
Enabling the HV function
Types of HV test
Setup using CableEye Software HV panel
Showing HV Test Results
Insulation breakdown vs. insulation resistance violation
Demonstrate with CB29 board
Single-ended HV test
Disabling conductors and enabling components for HV test



Independent Study

We offer a small library of short instructional videos for you to use at no charge. Each clip describes one basic function of the CableEye software using a live full-size video screen image and includes narration, active mouse highlighting, labeled call-outs, and inserted still images. You may view the videos in any order, although you should watch them sequentially to get the greatest benefit. Check back for new clips periodically.


Knowledge Base Recommendation
If you are a new User of CableEye test equipment, or thinking of pariticpating in Instructor-Led training, we highly recommend that you read the following reference material in the order displayed below.

1Getting Started Booklet Printed copy included with your CableEye System and digital copy on the installation drive. Can be download if you login to the support page here: CAMI SupportQuick guide to setup your tester and install the software.
2 Software Introduction Guide Printed copy included with your CableEye System and digital copy on the installation drive, or download it from here: Download Software Introduction Guide.Quick guide offering an introduction to every important function of the CableEye tester and software. Often, this guide is enough to setup your tester in a production environment.
3Web Video Clips On the installation drive and on our website here: Demonstration Video Clips.Multiple video clips demonstrating the use of important software features.
4User’s Manual The links on this User's Manual page will always take you to the most current (downloadable) version. A digital copy (current as of ship-date) was included on your installation drive. In-depth explanation of all features of the CableEye test system. Intended for system administrators and technicians.
5 Instructor-led Classes

THIS PAGE

Class-style training opportunities led by CAMI engineers. Please refer to this Training page.

Whether the audience constists of operators, technicians, engineers, or managers, CAMI's Cable & Harness Testing training will ensure your staff members are primed to be more creative and productive. Sessions vary in content and time, as they are dependent on your group size, and level of experience.


Training Board (CB-T1)

Use of this adapter board is a great way to familiarize new employees with CableEye test systems during their orientation. Populated with a few common connectors, the CB-T1 allows trainees to methodically experience how the system responds to opens, shorts, miswires, diodes, resistance, and intermittent connections while at the same time learning to operate the tester.

Training may be self-directed with this tool. A training procedure is included with the board. Click the button for details.



Training and Verification Fixture for CableEye Cable and Harness Continuity and HiPot Testers






Book Your Training Now

Complete and submit the following form or send us an e-mail with the same information to salesREMOVE@REMOVEcamiresearch.REMOVEcom with the subject "Request for Training". We will contact you for details and a quote for your training needs.
