Cable, harness and hipot testers from CableEye: PC-Based Systems.

US Flag: Click here for English version of CAMI site Mexican Flag: Click here for Spanish version of CAMI site
Videoclip Demonstrations of the CableEye PC Software

CableEye® Cable and Harness Testers Benefits

CableEye is an expandable and upgradable diagnostic Cable & Harness Test System for assembly, prototyping, production, and QC of standard or custom cables. These harness and cable testers instantly measure, display, and document basic electrical properties such as continuity, resistance, dielectric breakdown, insulation resistance, miswires, and sporadic defects. Users will reliably improve productivity, product quality, and documentation with rapid ROI, and reduce their RMA and Warranty Costs

Find defective or miswired cables instantly before they damage equipment or waste valuable technician time. CableEye cable testers and harness testers have a unique, patented graphic wiring display to visually pinpoint problems when wiring errors are detected, and offer one-second pass/fail testing. Quickly locate intermittent connections and identify their position in the cable.

Expand CableEye up to 2,560 test points for wiring harnesses, and measure cables of up to 4000' in length. With our cable tester Model M3U, set two resistance thresholds, one for good connections down to 0.3Ω, and one for isolation up to 10 MΩ. Measure embedded resistors and resistor networks, and check the orientation of diodes and forward voltage. Use our HVX high voltage cable tester to check cables at up to 1500vDC and 1000vAC (hipot test), and measure 4-wire resistance with selectable test current up to 1A.

An on-line database holds an unlimited number of User cables and includes descriptive notes and label text for each cable. Search the database for a wiring match to a measured cable, or by User part number or descriptive text. High-resolution graphic output on laser and ink-jet printers provides the hard-copy documentation necessary for ISO 9000-certified manufacturing. Print labels simultaneously on a second printer as cables are tested.

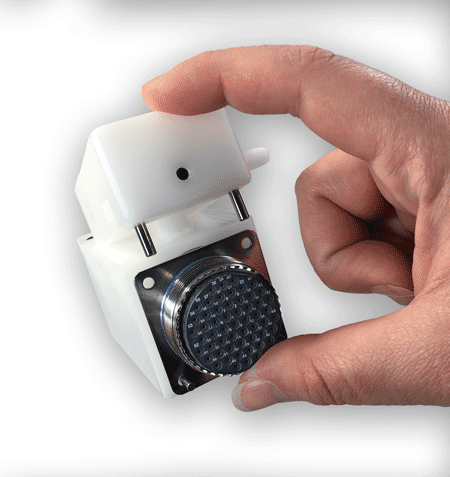

Choose from a wide variety of plug-in connector boards to mate with most standard cables, and easily mount custom connectors for unusual applications. For special applications, use our MiniHook probes to test continuity in connectorless cables, backplanes, and printed circuit boards. We will also design and build custom wire harness tester interfaces for turn-key delivery.

The easy-to-use software can be set up for one-button operation to speed production testing. Unskilled operators need only to press the TEST pushbutton on the fixture to trigger an involved test sequence set up by the quality control engineer, with results automatically logged to disk for later analysis and report generation. Use an optional footswitch for hands-free operation. For complex wire harnesses and multi-headed cables, label each pin with your own custom text to speed the location of faulty connections.

Flexible, Comprehensive Testing

Standard and Custom Cable Tests

Cable Test and Cable Diagnostics

Harness Test and Harness Diagnostics

Connectorless Cables Test

Connectorless Backplane Test

Connectorless Printed Circuit Board Test

Long Cable Tests (up to 4000ft)

Continuity Test

Resistance Test

Dielectric Breakdown Test (HiPot)

Insulation Resistance Test

Miswire Test

Intermittent Defect Test

Convenient and Easy to Use

Light-Guided Connector Assembly

Fast Tests

PC-Based System

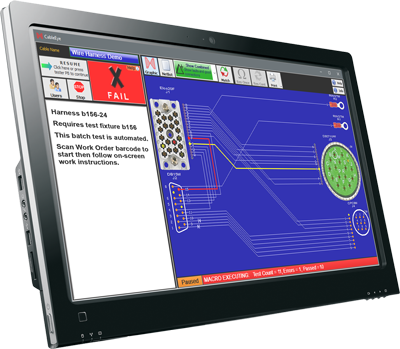

Intuitive GUI with Comprehensive Graphics

Easy Scripting Language

Standard Out-of-the-Box File Sharing, Data Collection, Reporting

ISO9000 Documentation Compliant

Cable Database / Library

Optional Footswitch for Hands-Free Use

Small Footprint

Multilingual GUI: ENG, ESP, DEU, FRA, TUR, CHN, JPN

Investment
Longevity

Expandable and Upgradable: To 2,560 Test Points

Backwards Compatible H/W and S/W Upgrades

Free One-Year Parts and Labor Warranty on all Equipment includes Free Tech. Support, S/W & Database Upgrades

Warranties Renewable Yearly

Dynamic frame illustrating fast, precise, simple, USB certified CableEye test system for standard and custom cables and harnesses, highlighting sample test hardware, GUI, and printed documentation.
